Cuav Can Pdb Open Source Drone Controller Board Pixhawk Flight Rc Helicopter for Ardupilot Px4

Name: Cuav Can Pdb Open Source Drone Controller Board Pixhawk Flight Rc Helicopter for Ardupilot Px4
Brand: CUAV
Price: 65 USD

Buy cheap Cuav Can Pdb Open Source Drone Controller Board Pixhawk Flight Rc Helicopter for Ardupilot Px4 product

Place of Origin : China, GuangdongChina

Technical parameters : KV1100

Size : 89*42.5*33mm

Remote Control Peripherals/Devices : Remote Controller

Certification : ce

Four-wheel Drive Attributes : Battery

Brand Name : CUAV

compatible brand : CUAV

Use : Vehicles Remote Control Toys

MOQ : 1 piece

Price : $65-159 / piece

Upgrade Parts/Accessories : Flight controller

Material : Metal

private mold : Yes

RC Parts Accs : Speed controller

Gender : Unisex

Contact Now

Product Features
RC Parts & Accs	Speed controller
Size	8942.533mm
Use	Vehicles & Remote Control Toys
Material	Metal
place of origin	Guangdong,China
Gender	Unisex
Certification	ce
Remote Control Peripherals/Devices	Remote Controller
brand name	CUAV
Upgrade Parts/Accessories	Flight controller
Technical parameters	KV1100
private mold	Yes
Four-wheel Drive Attributes	Battery

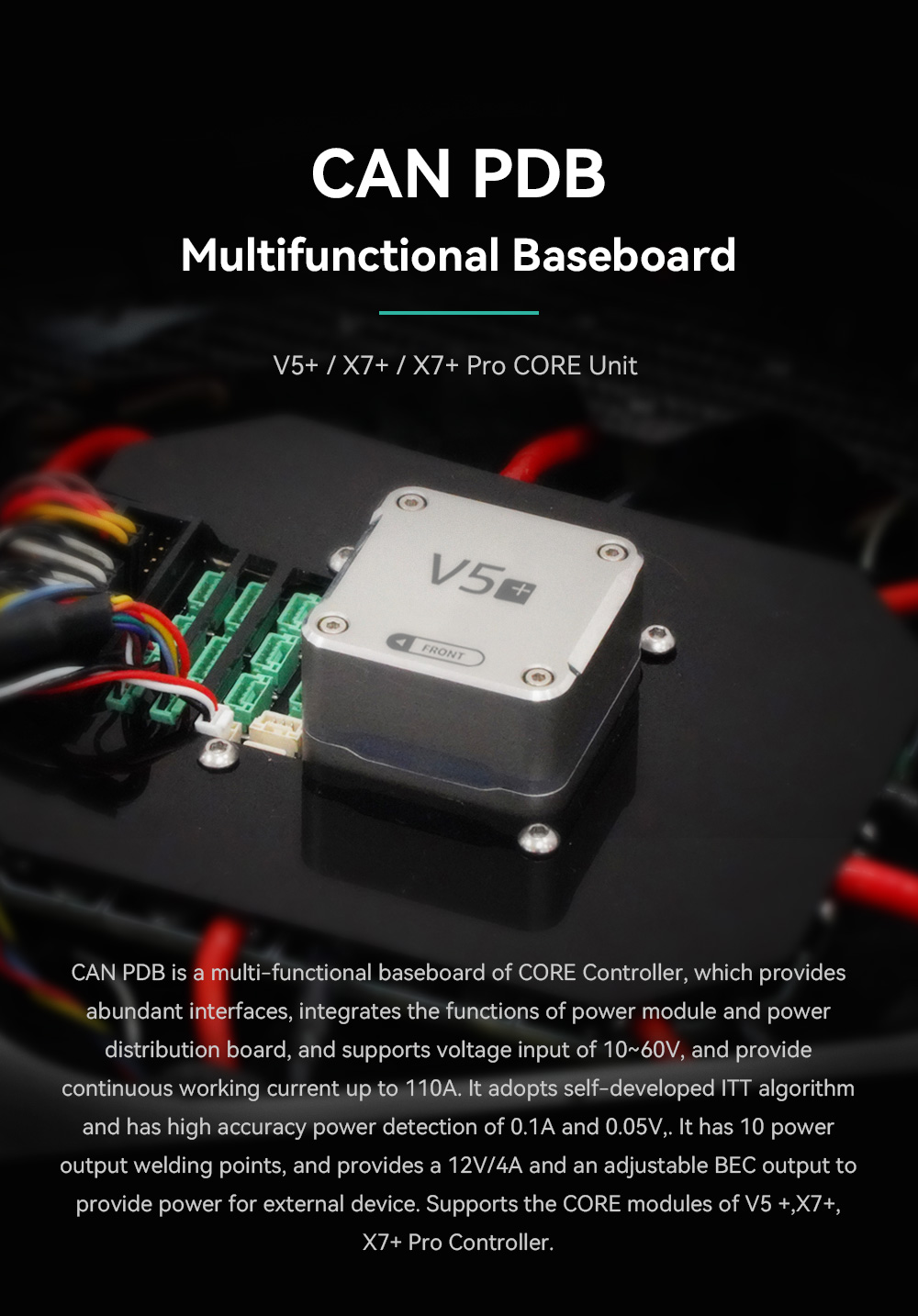

CUAV CAN PDB Open Source Drone Controller Board Pixhawk Flight Control Board RC Helicopter Control Board for Ardupilot PX4

Product Description

Cuav Can Pdb Open Source Drone Controller Board Pixhawk Flight Rc Helicopter for Ardupilot Px4

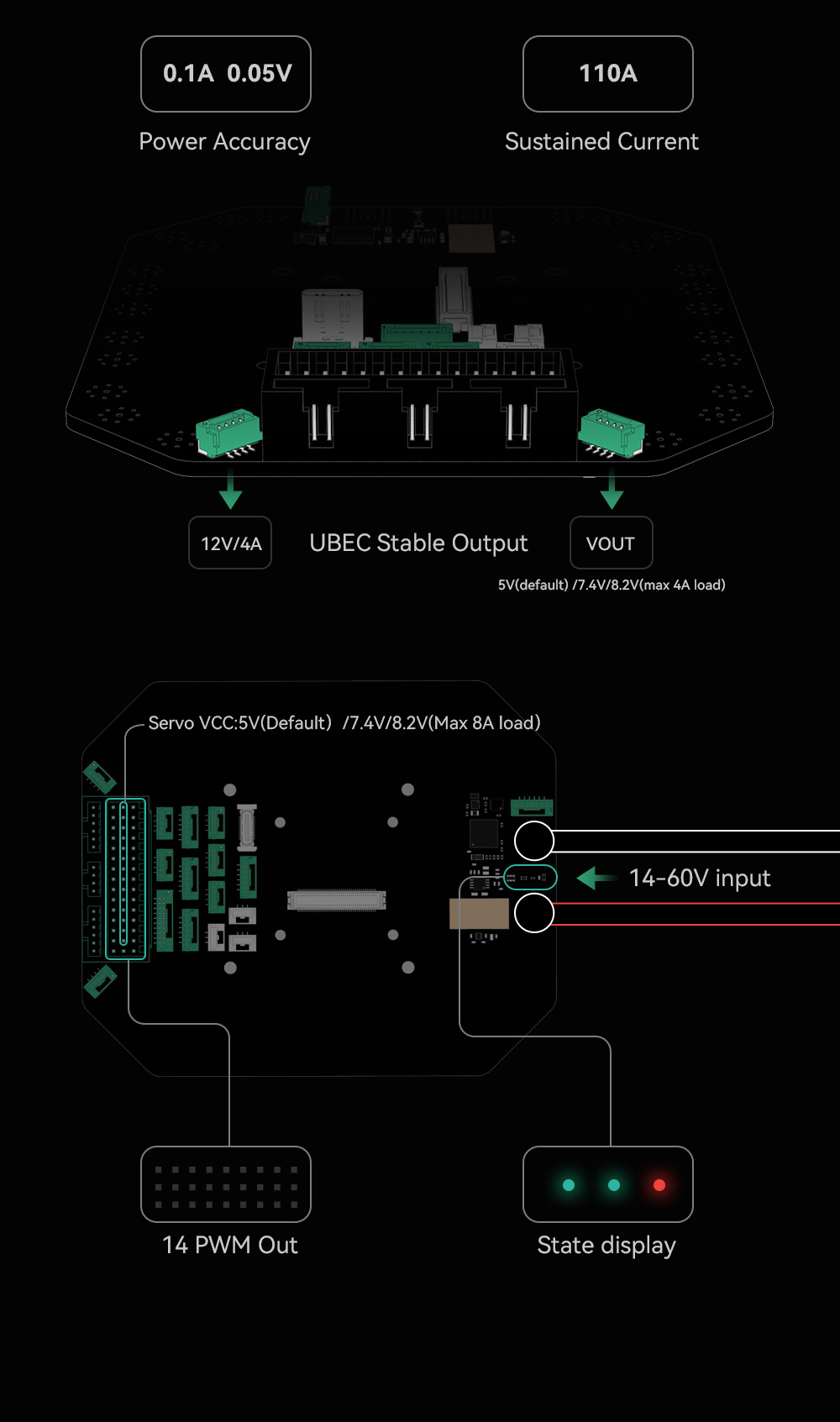

CAN PMU Power Module Feature:-- 0.05V 0.1A accuracy
-- 5V/5A regulated output
-- Maximum support 62V voltage input, 110A current
-- measurement
-- Self-developed ITT algorithm

Introducing:CAN PMU is a drone power management module with built-in STM32F4 processor; running CUAV ITT compensation
algorithm, can accurately measure the voltage and current of the drone; support 6~62V voltage input, and the POWER port
can output 5V/ 8A. It uses advanced CAN bus communication and supports the standard DroneCAN protocol; each PMU uses factory-level calibration to ensure good consistency and high accuracy.

Main Parameter
MCU	STM32F412(32 Bit Arm Cortex-M4, 100MHz, 512KB FLASH, 256KB RAM)
Operating Voltage	14 ~ 62V(4 ~ 15S Lipo)
Detection Current Range	0 ~ 110A
Output Power(MAX)	6000W(last 120s)
Stable Output Power(MAX)	5500W

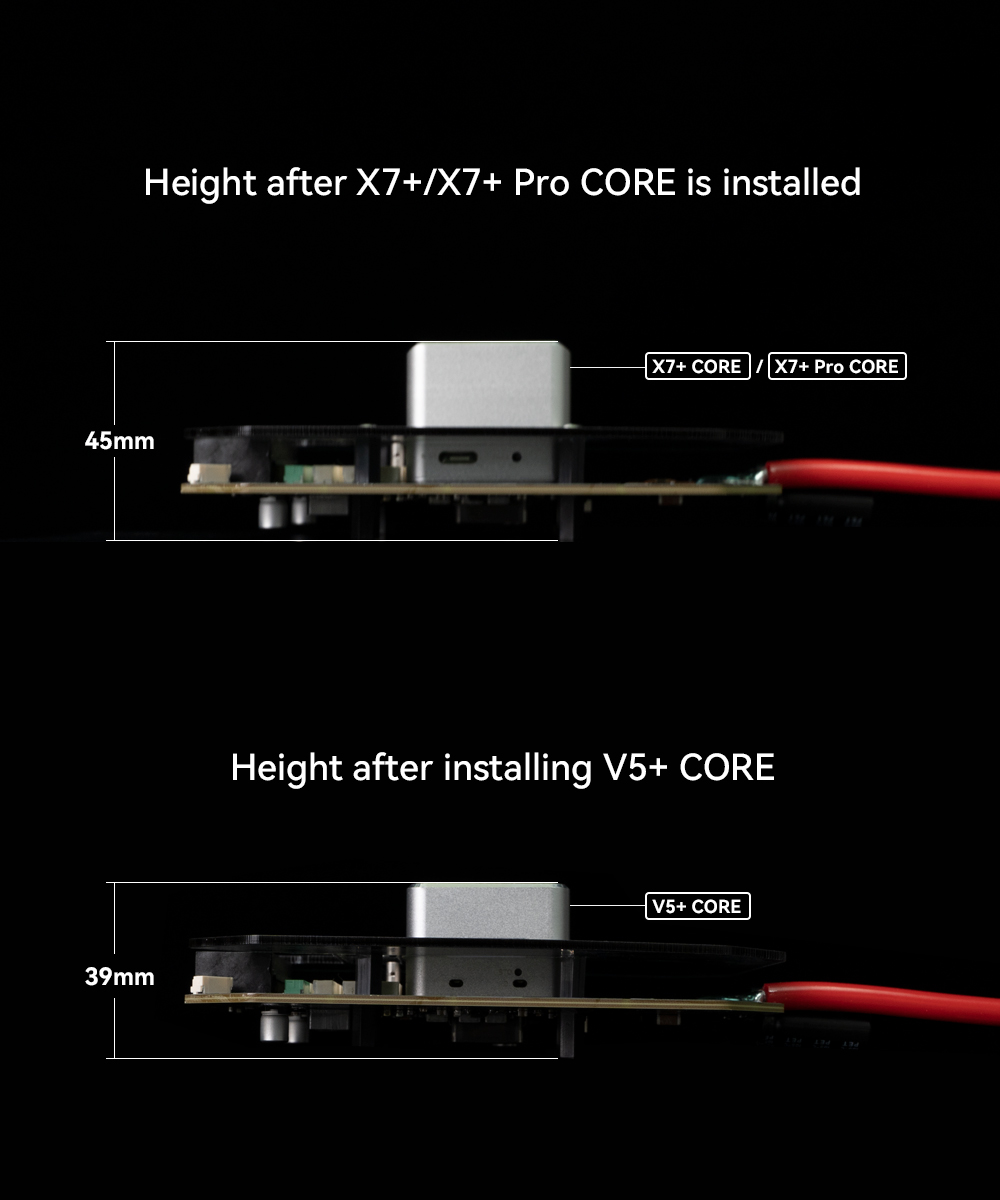

Core	V5 / X7 / X7 Pro CORE
Frame Type	Plane/VTOL/Copter/Heli/Rover/Sub
Controller Firmware	ArduPilot 4.0.0 and above firmware PX4 1.11.0 and above firmware
Operating Temperature	-20 ~ 100°C

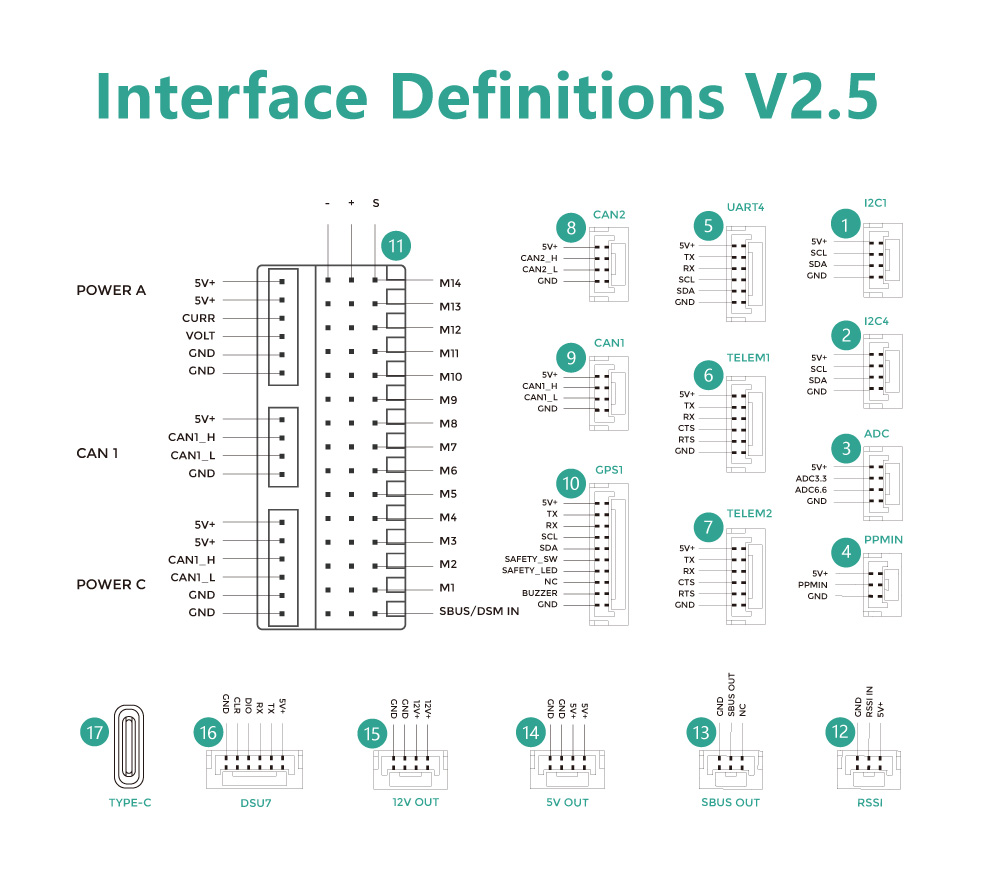

Interface
V_OUT	5V(default)/7.4V/8.2V(4A)
Servo VCC	5V(default)/7.4V/8.2V(8A)
12V OUT	4A(max)
USB	1
UART1	5(GPS/UART4/TELEM1/TELEM2/DEBUG)
CAN	2
I2C	3
SBUS/DSM IN	1
PPM IN	1
Servo	14
ADC3.3	1
ADC6.6	1
SBUS Outs	1(This interface is invalid when using X7 /X7 pro core)
RSSI	3.3V(Analog input)
DSU7	1
Size	12.8cm (length) * 10.0cm (width) *1.2cm (height)
Weight	200g (including cable)
Wire Length	30cm

Cuav Can Pdb Open Source Drone Controller Board Pixhawk Flight Rc Helicopter for Ardupilot Px4 Images
