Original DLE 55 RA Gas Engine for RC Airplane Model - Fixed Wing

For Vehicle Type : Airplanes

MOQ : 2 pieces

Quantity : 2pcs

Material : Metal

Tool Supplies : Assembled class

Price : $303-338 / piece

Place of Origin : China, GuangdongChina

private mold : No

Brand Name : DLE

compatible brand : DLE

RC Parts Accs : Engines

Contact Now

Product Features
RC Parts & Accs	Engines
brand name	DLE
For Vehicle Type	Airplanes
Quantity	2pcs
Material	Metal
place of origin	GuangdongChina
Tool Supplies	Assembled class

Original DLE 55 RA Original DLE GAS Engine for RC Airplane Model DLE55RA DLE 55RA DLE-55RA for RC Airplane Fixed Wing Model

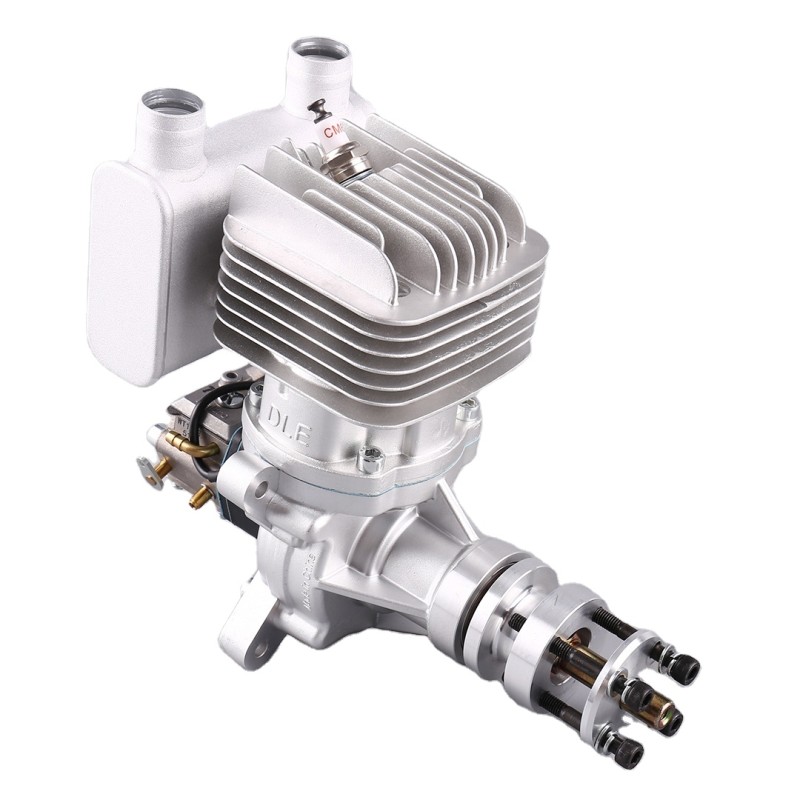

Original DLE 55 RA Gas Engine for RC Airplane Model - Fixed Wing

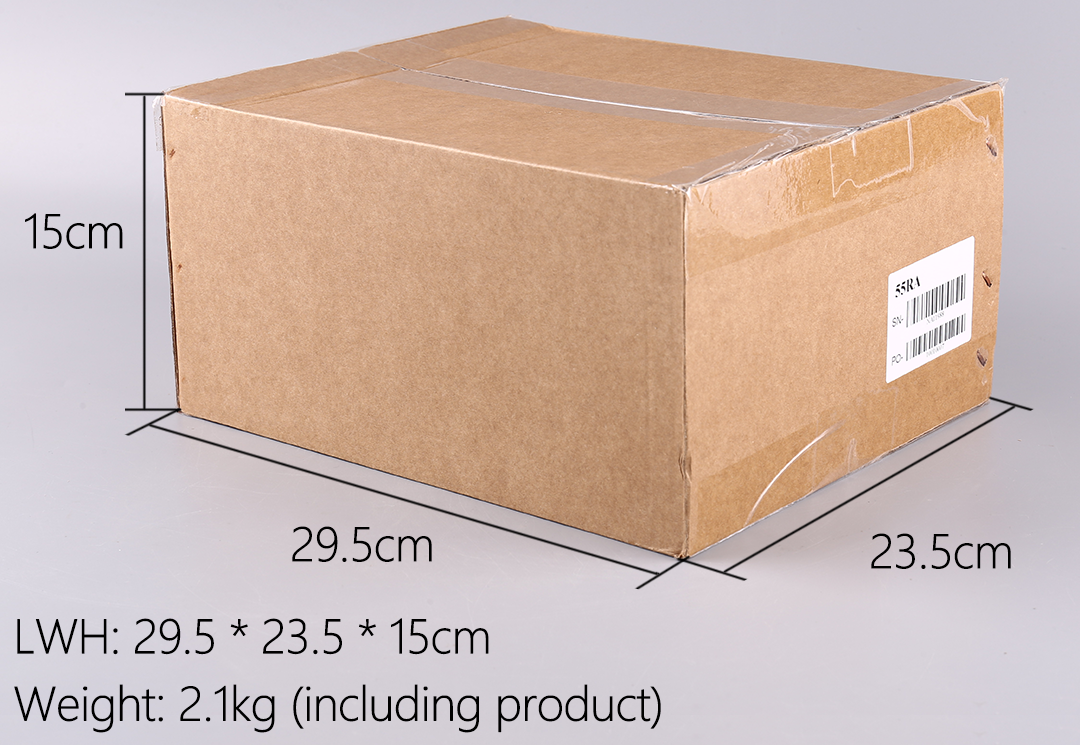

Attention: The packaging may vary depending on the batch of the product, and the actual receipt shall prevail

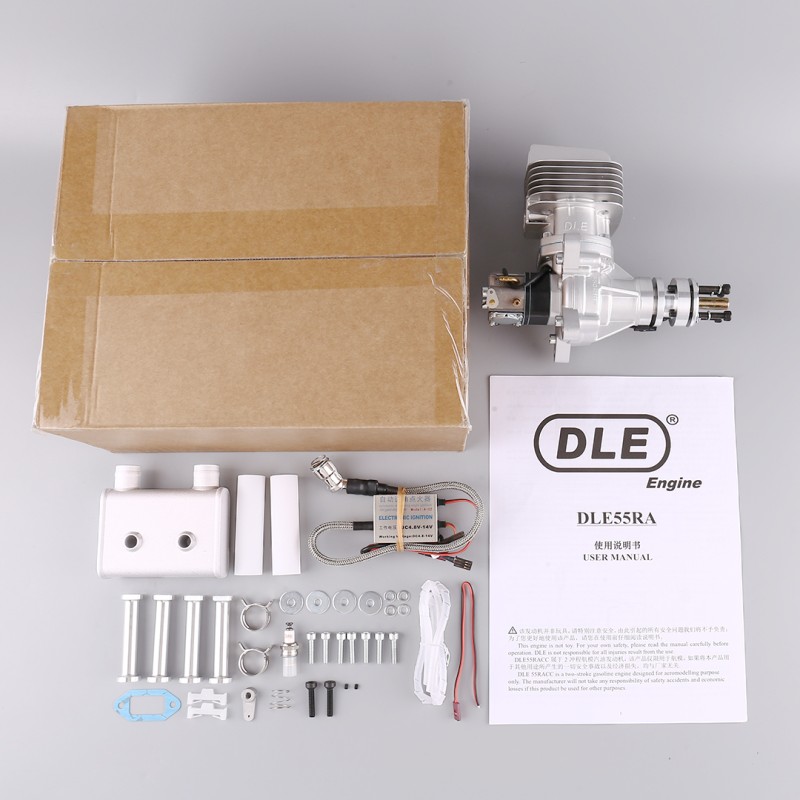

Packing list:
DLE engine * 1

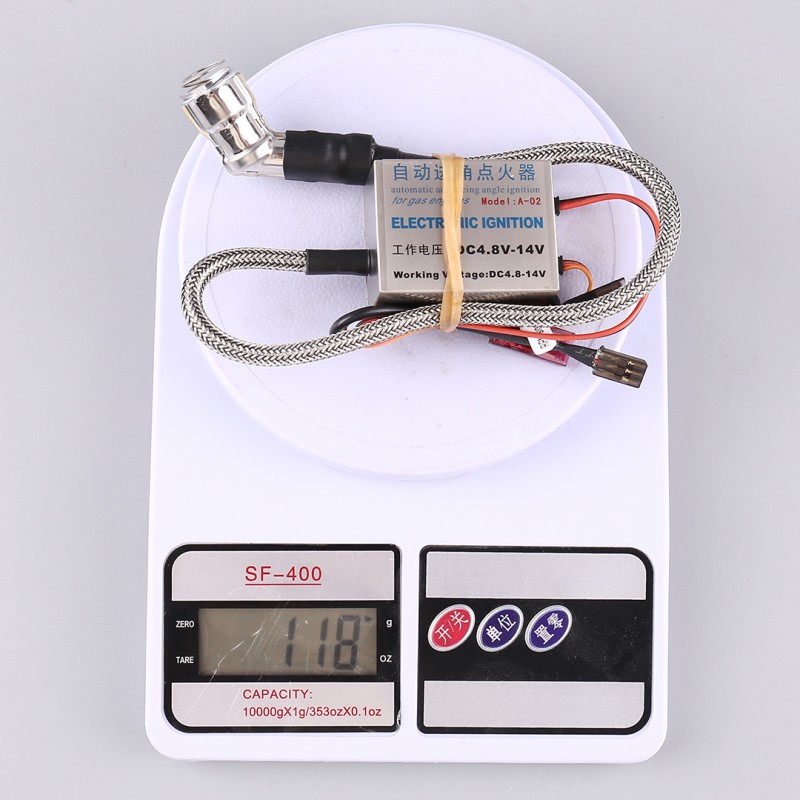

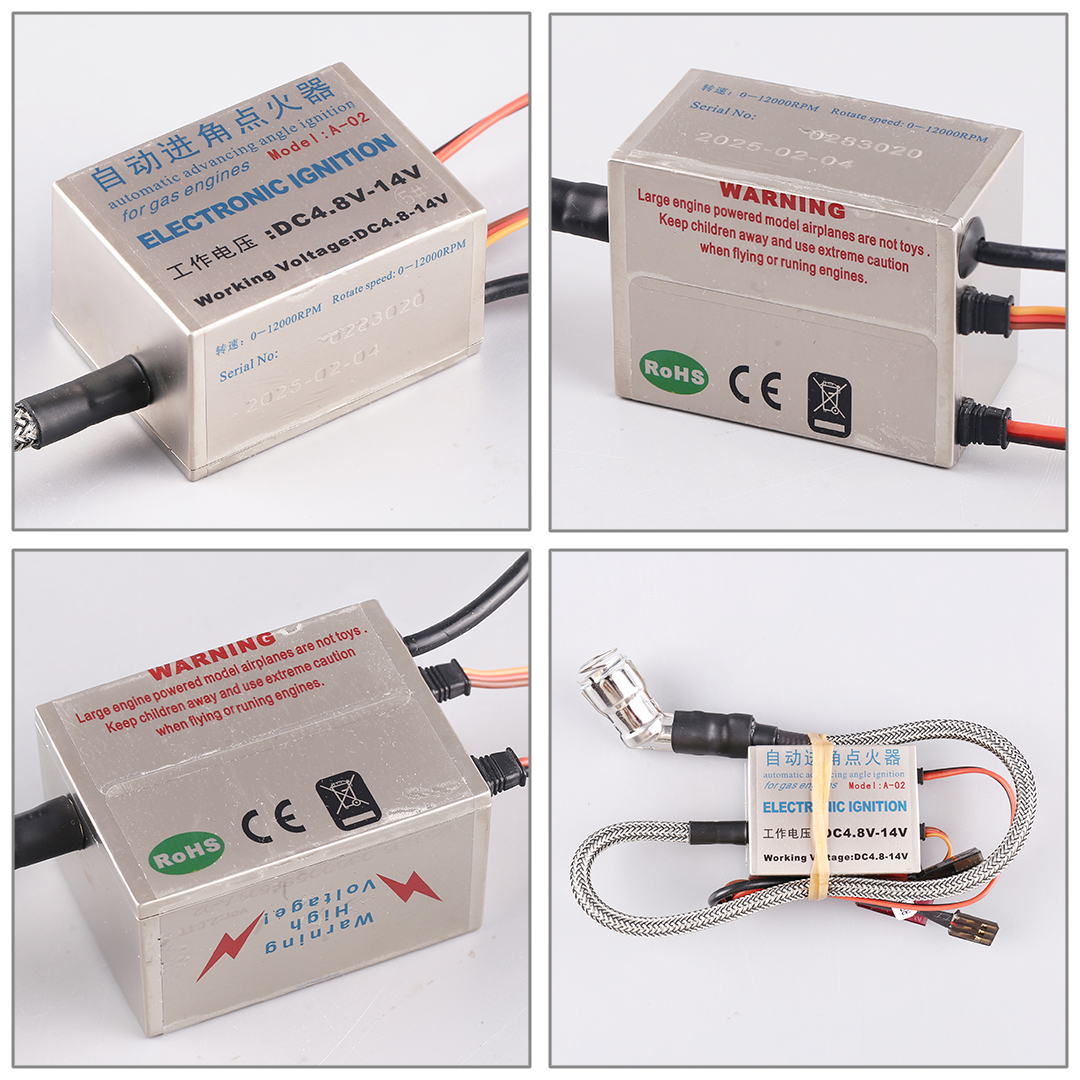

DLE electronic igniter set (CDI) * 1
Carburetor * 1
Engine aluminum column nail set * 1
Exhaust pipe group * 1

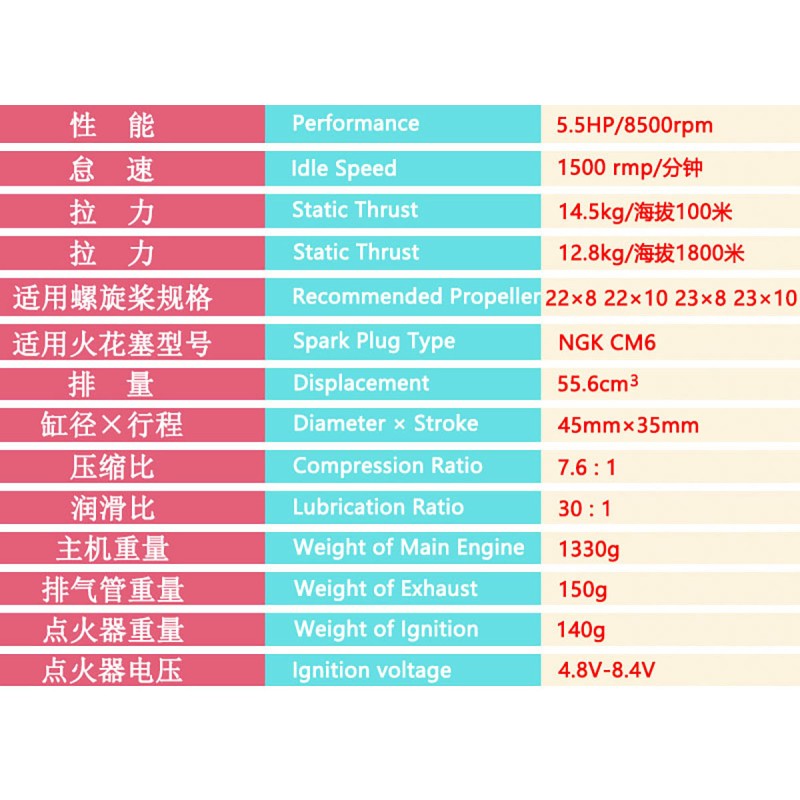

Product parameters
performance:5.5HP/8500rpm

Idle speed::1500rmp / min

Tension:14.5kg / 100M above sea level,12.8kg altitude 1800m

Applicable propeller specification:22*8 22*10 23*8 23*10

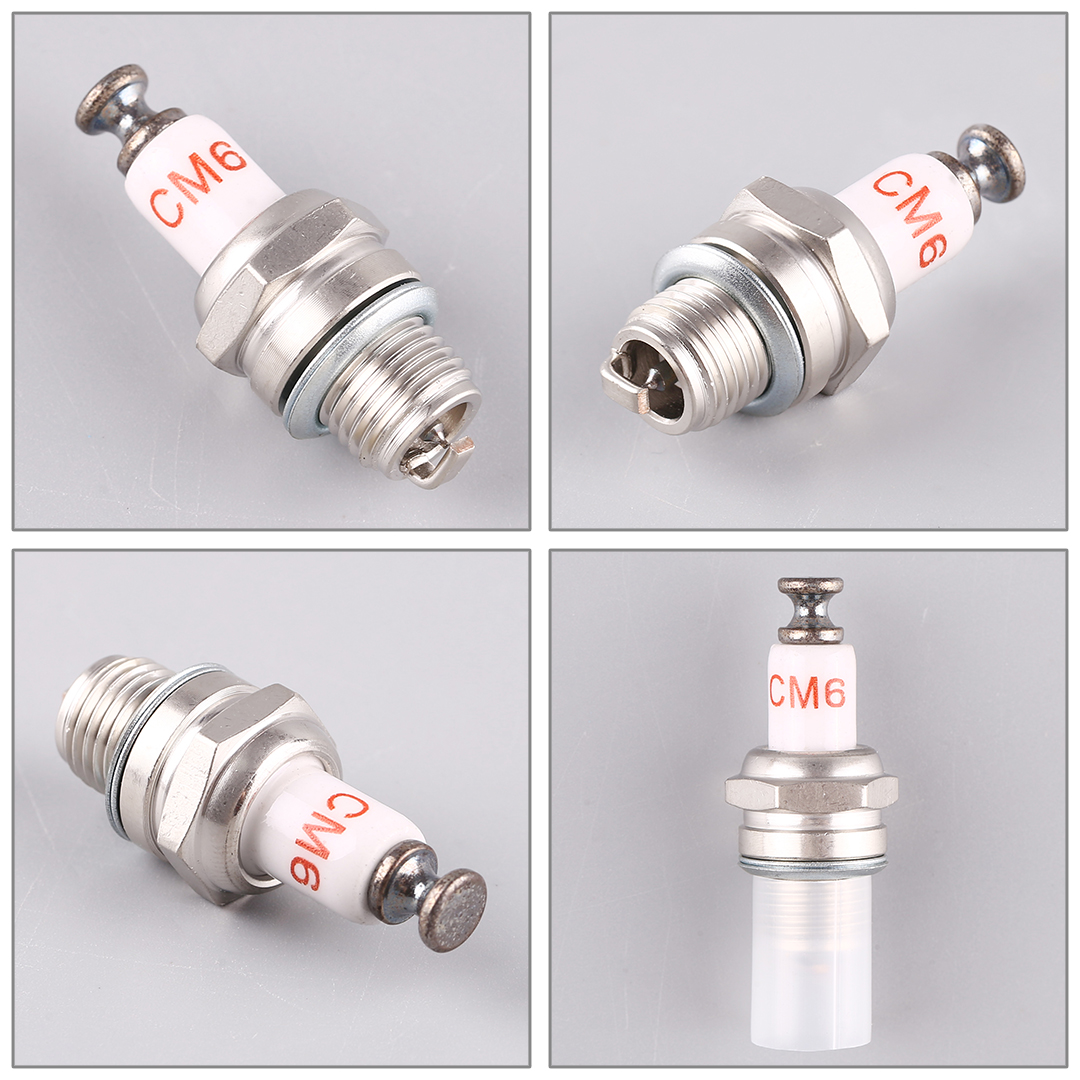

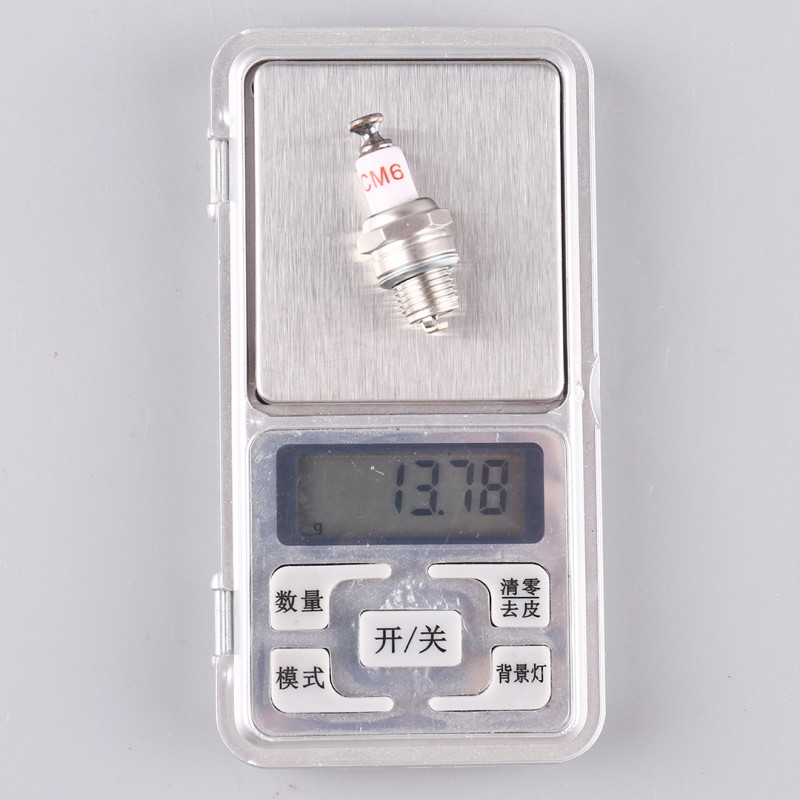

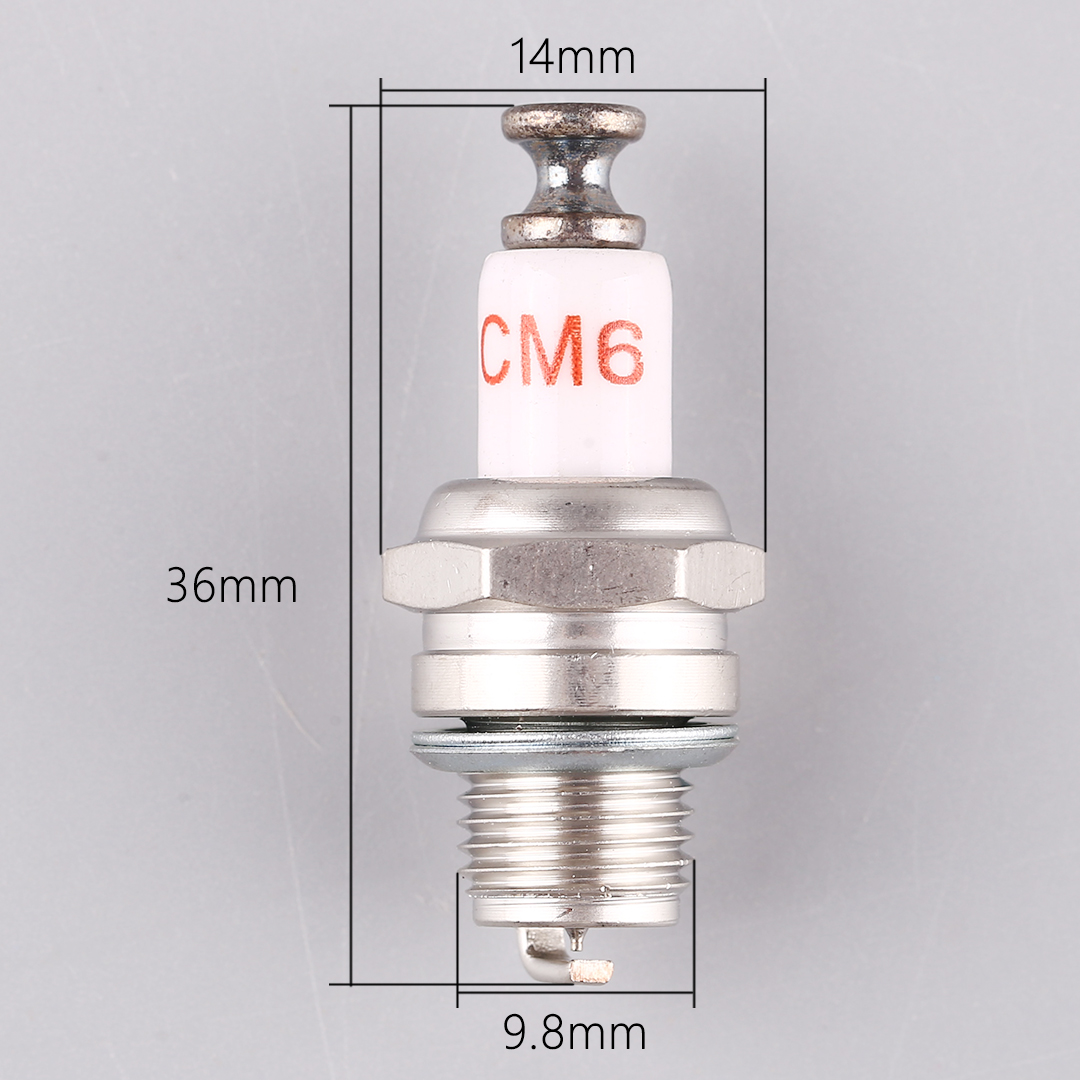

Applicable spark plug model: NGK CM6

Exhaust volume:55.6cm3

Cylinder bore x Stroke:45mm*35mm

Compression ratio:7.6:1

Lubrication ratio:30:1

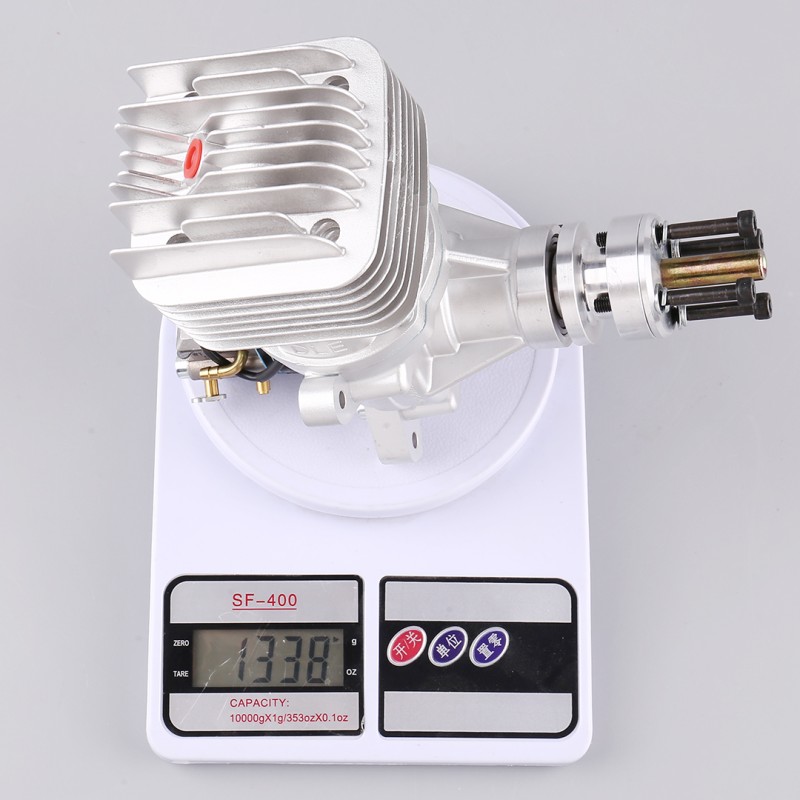

Weight of main engine:1330g

Weight of exhaust pipe:150g

Weight of igniter:140g

Voltage of igniter:4.8v-8.4v

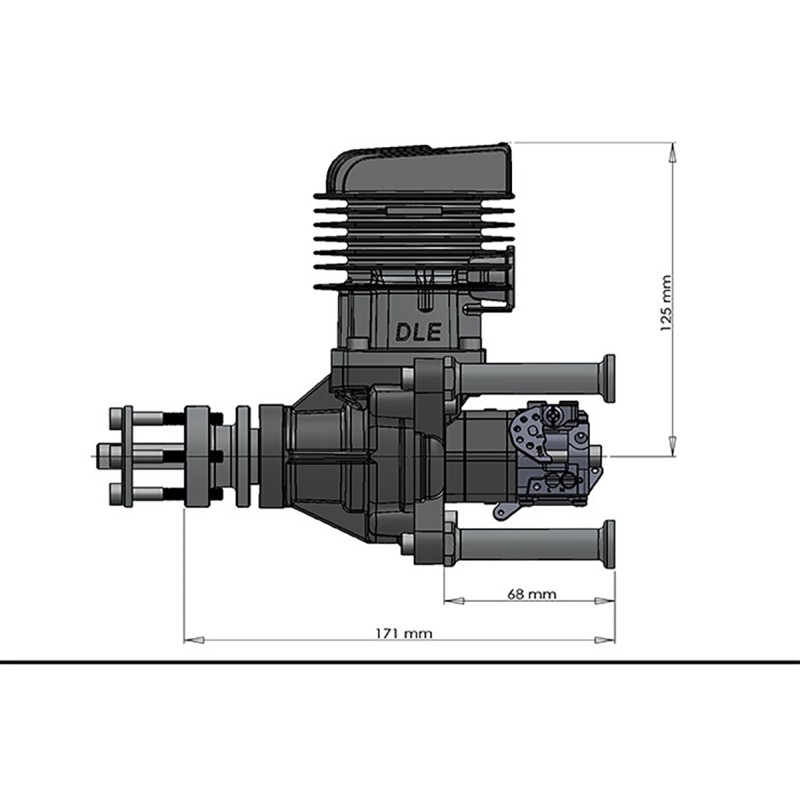

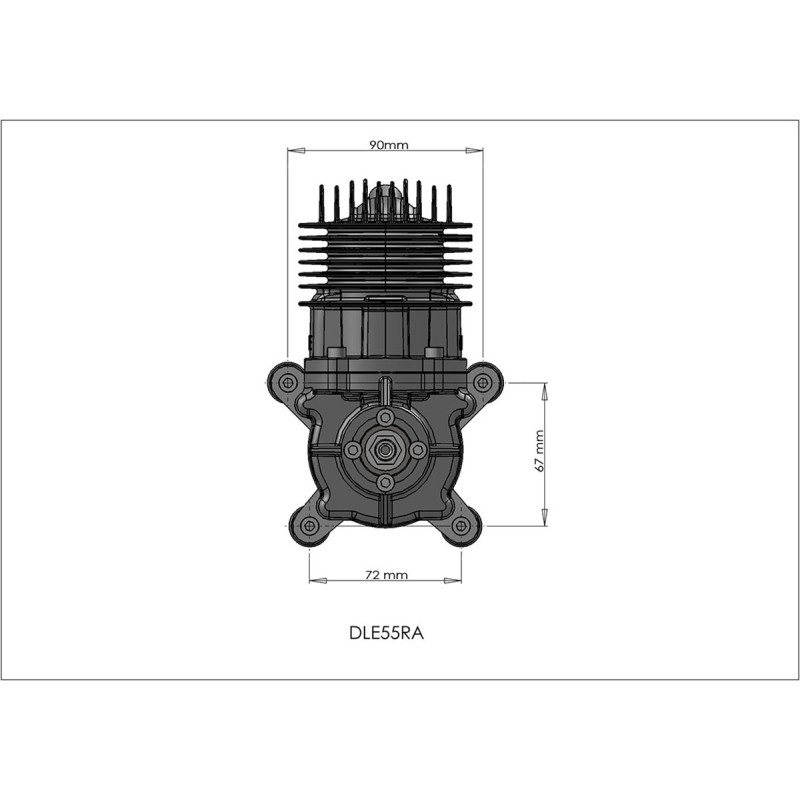

Product size (manually measured)

Two stroke aviation model gasoline engine usage tips:
When installing the engine, be sure to seal the carburetor and exhaust port to prevent foreign objects from entering the engine
and causing damage to the engine cylinder and piston, which may cause inconvenience to the use of your engine.

Two stroke aviation model gasoline engine running in standard:
The engine running in is divided into ground running in and flight running in. Only a good running in can the engine exert its
best power, performance, and service life. Customers are requested to fully run in the engine after receiving it before use. Thank
you!

1. Break in time: Ground break in for more than 2 hours, flight break in for more than 5 hours
2. Speed distribution for running in: idle 20%, medium 60%, high 20%
3. Lubrication ratio for break in: 25:1-30:1 (fully synthetic two-stroke engine oil)
4. Precautions for running in: During the running in process, it is forbidden to flash oil (excessive throttle changes in a short
period of time). During the flight running in process, try to avoid prolonged maximum power flight and keep it below 80%. Pay
attention to whether the engine's heat dissipation channel is unobstructed and whether the propeller used is appropriate. Before
starting flight or debugging, it is necessary to preheat and debug.

Note:Only by taking care of the engine can it have a good service life. The normal service life of gasoline engines is over 200
hours. At the same time, we recommend using Mote 800 fully synthetic two-stroke engine oil for our engines. If you encounter any
problems during use, please feel free to contact us and we will provide comprehensive after-sales service for all model
enthusiasts.

Finally, I hope every user can have a good engine experience. Thank you.

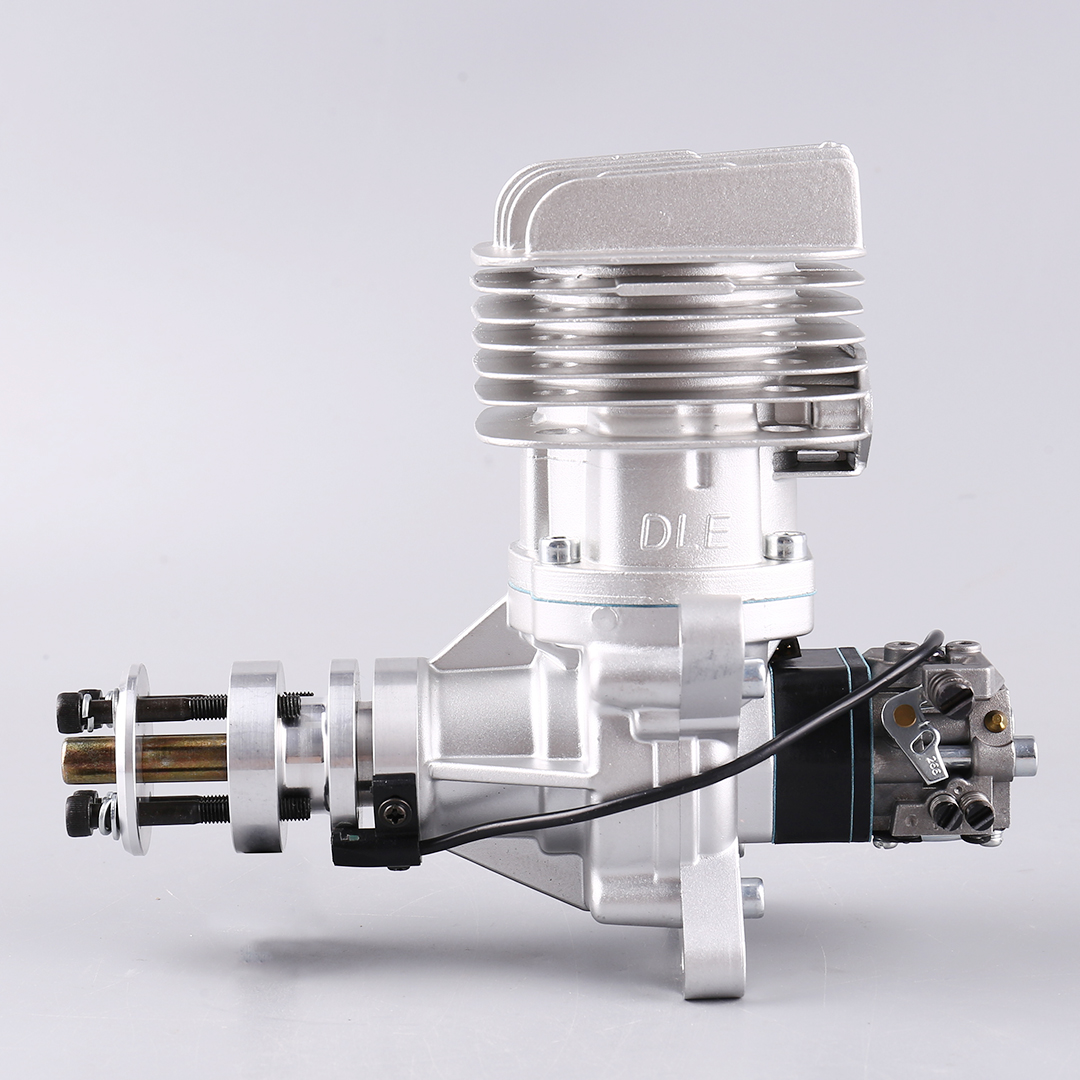

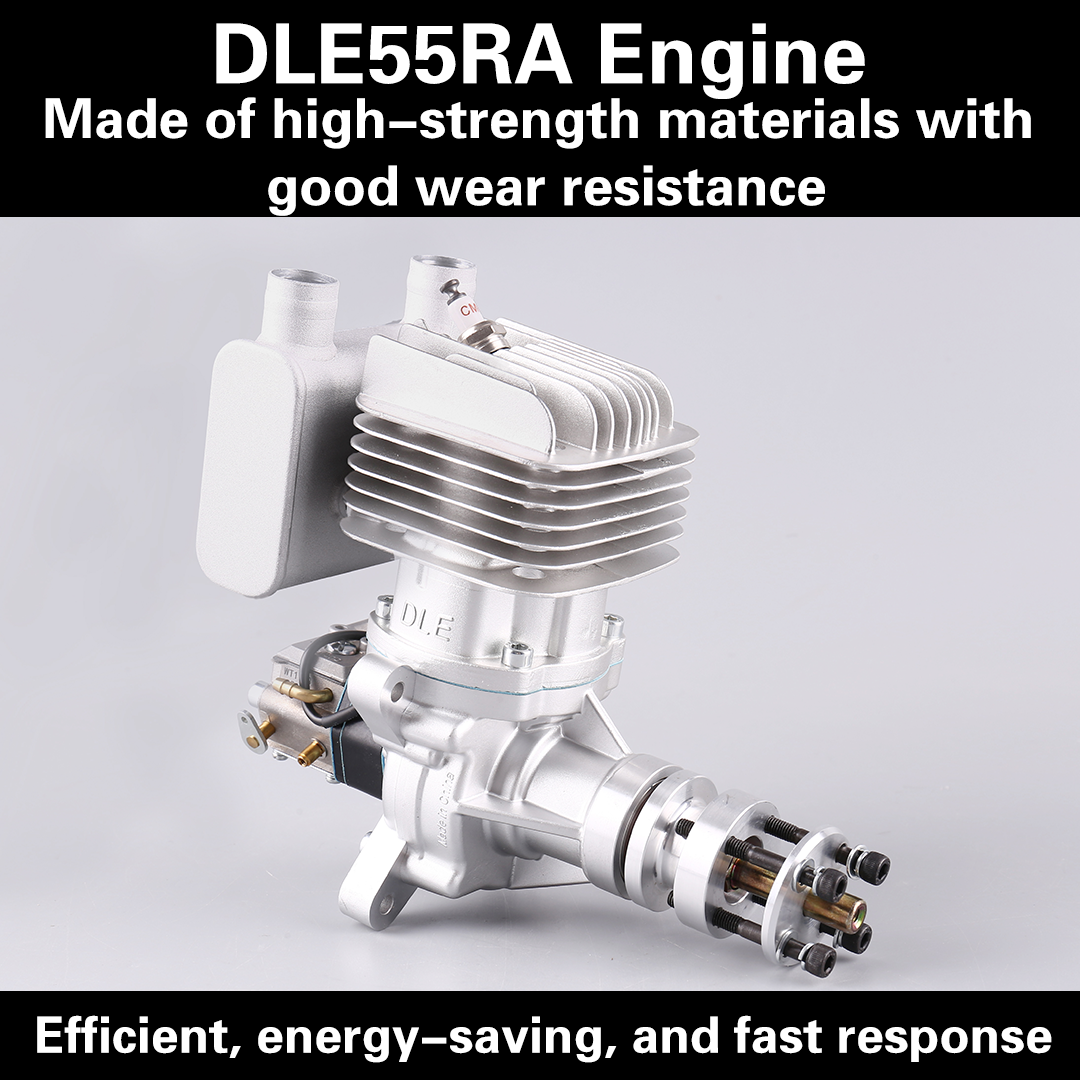

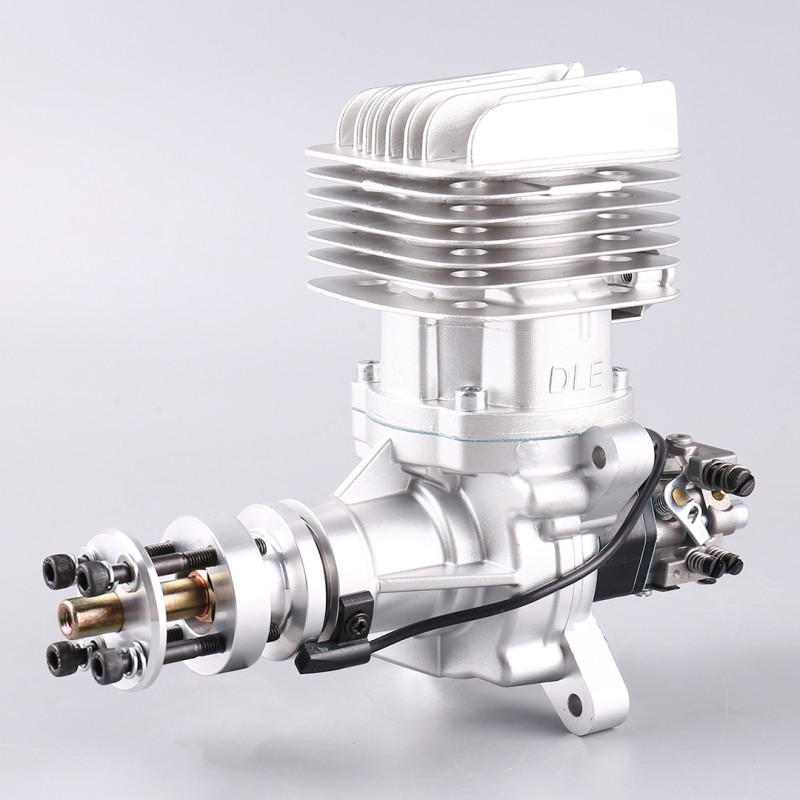

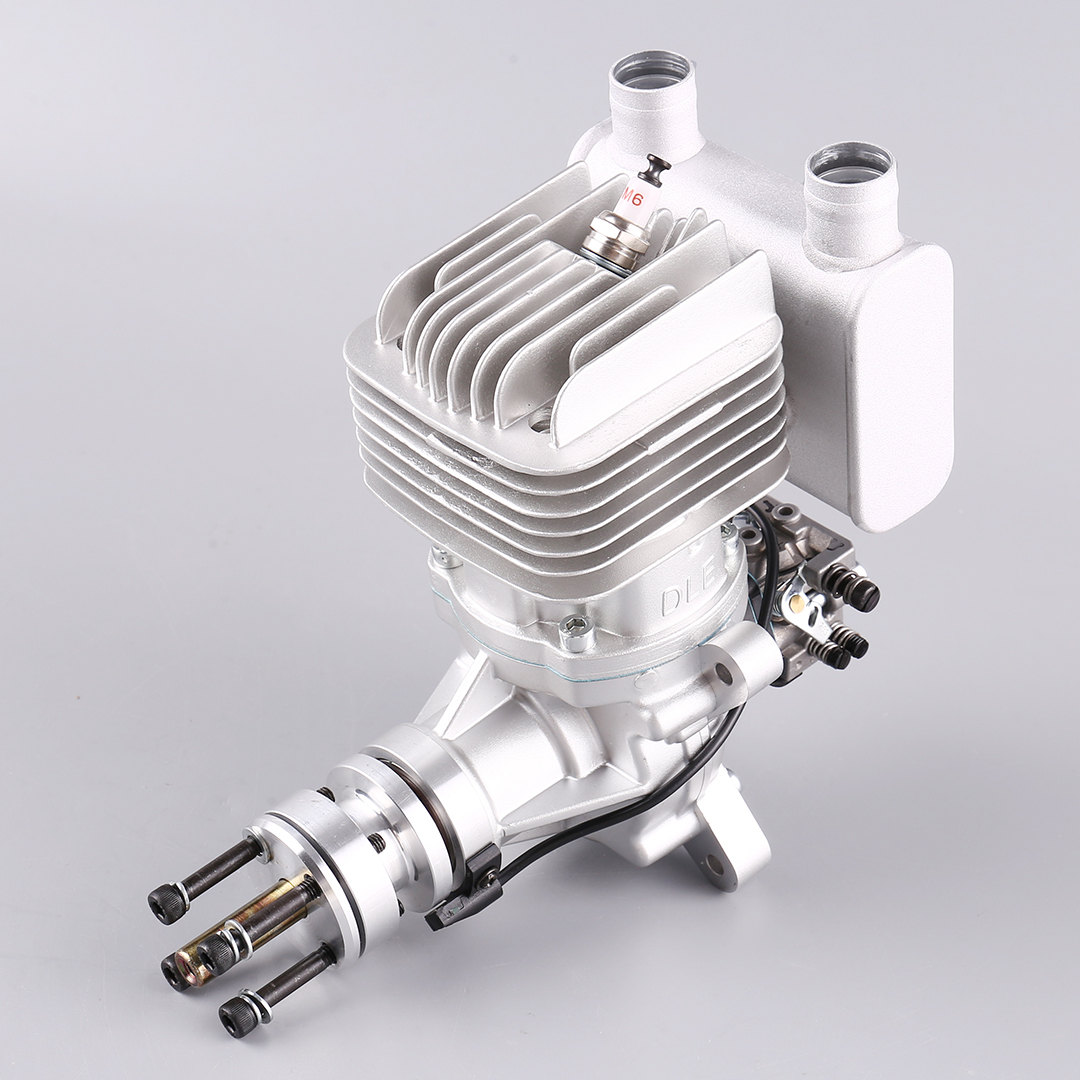

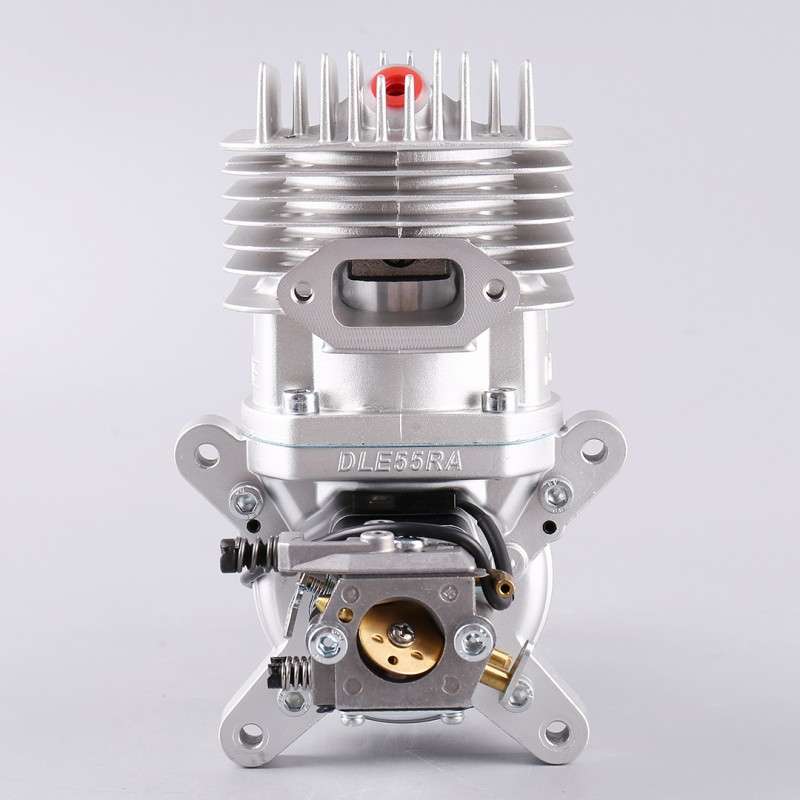

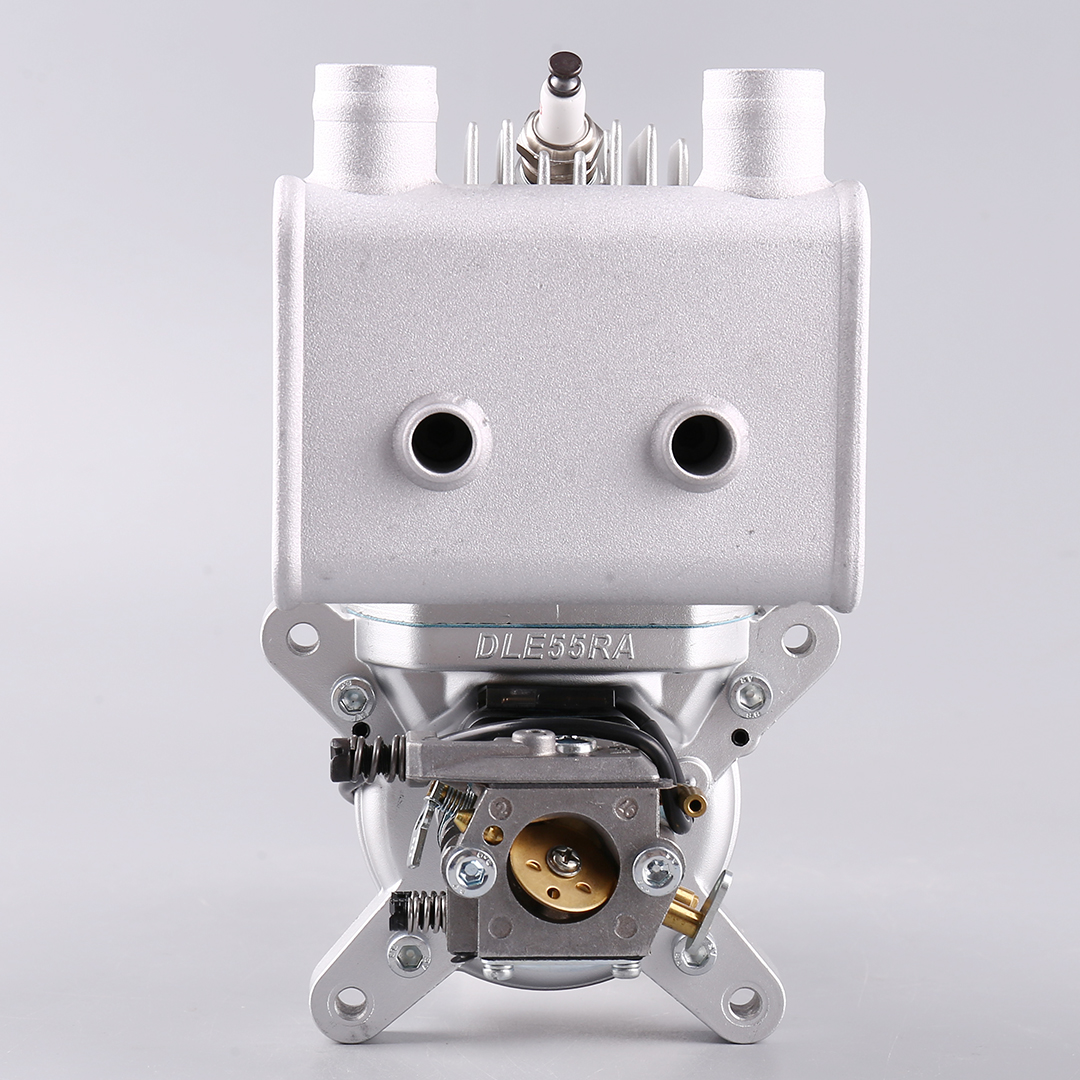

Item Picture

Original DLE 55 RA Gas Engine for RC Airplane Model - Fixed Wing Images
