Holybro H-Flow Optical Flow And Sensor Module Pixart Broadcom Tof Infrared Led Integrated Rangefinder

Name: Holybro HFlow Optical Flow And Sensor Module Pixart Broadcom Tof Infrared Led Integrated Rangefinder
Brand: Holybro
Price: 120.90 USD

Buy cheap Holybro H-Flow Optical Flow And Sensor Module Pixart Broadcom Tof Infrared Led Integrated Rangefinder product

private mold : No

Material : Plastic

MOQ : 1 piece

Brand Name : Holybro

Price : $120.90-141.80 / piece

Place of Origin : China, Guangdong China

compatible brand : For fpv

Contact Now

Product Features
brand name	Holybro
private mold	No
Material	Plastic
place of origin	Guangdong, China

Holybro H-Flow Optical Flow and Distance Sensor Module PixArt Broadcom ToF Infrared LED Integrated Rangefinder Module

Holybro H-Flow Optical Flow And Sensor Module Pixart Broadcom Tof Infrared Led Integrated Rangefinder

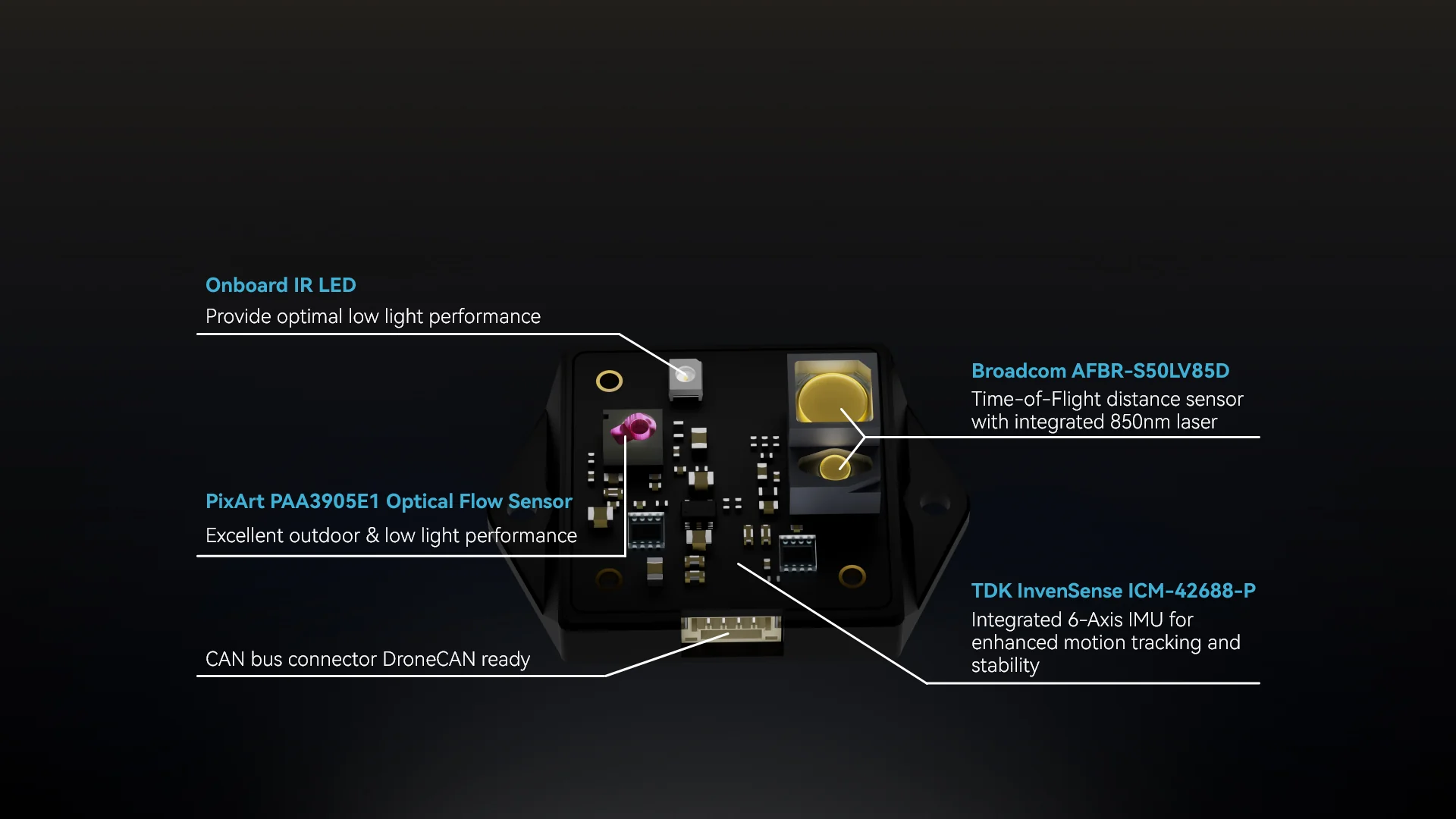

The Holybro H-Flow is a compact optical flow and distance sensor module that combines a PixArt PAA3905E1 optical flow sensor, a Broadcom AFBR-S50LV85D distance sensor, and an InvenSense ICM-42688-P 6-axis IMU. This all-in-one design simplifies installation, while the onboard infrared LED enhances visibility in low-light conditions.

          The H-Flow features a Pixhawk-standard 4-pin CAN connector, ensuring seamless integration with Pixhawk-compatible controllers via the CAN port. Utilizing the DroneCAN protocol offers reliable and high-speed data transmission between the sensor and the flight controller.

Specification
* PixArt PAA3905E1 Optical Flow Sensor * Tracks under low light conditions of >5 lux
* Effective Viewing angle up to 42°
* Wide working ranges from 80mm up to 30m
* Up to 7.4 rad/s
* 40 mW 120° viewing angle IR LED built onto the board for improved low-light operation

* Broadcom AFBR-S50LV85D Time-of-Flight Distance Sensor
* Integrated 850 nm laser light source
* Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels
* Typical distance sensing range up to 30m
* Operation of up to 200k Lux ambient light
* Works well on all surface conditions
* Transmitter beam of 2° x 2° to illuminate between 1 and 3 pixels

* InvenSense ICM-42688-P 6-Axis IMU
* STM32F412CEU6 MCU
* Pixhawk Standard CAN Connector (4 Pin JST GH)
* Compact Form Factor
* Software-Controlled CAN Termination
* Weight: 15.2g (3.5g without casing)

Feature
 * Integrated Optical Flow and Rangefinder Module
 * PixArt Optical Flow Sensor for Accurate Motion Tracking
 * Broadcom ToF Sensor for Precise Distance Measurement
 * Infrared LED for Optical Low-Light Performance
 * DroneCAN Protocol

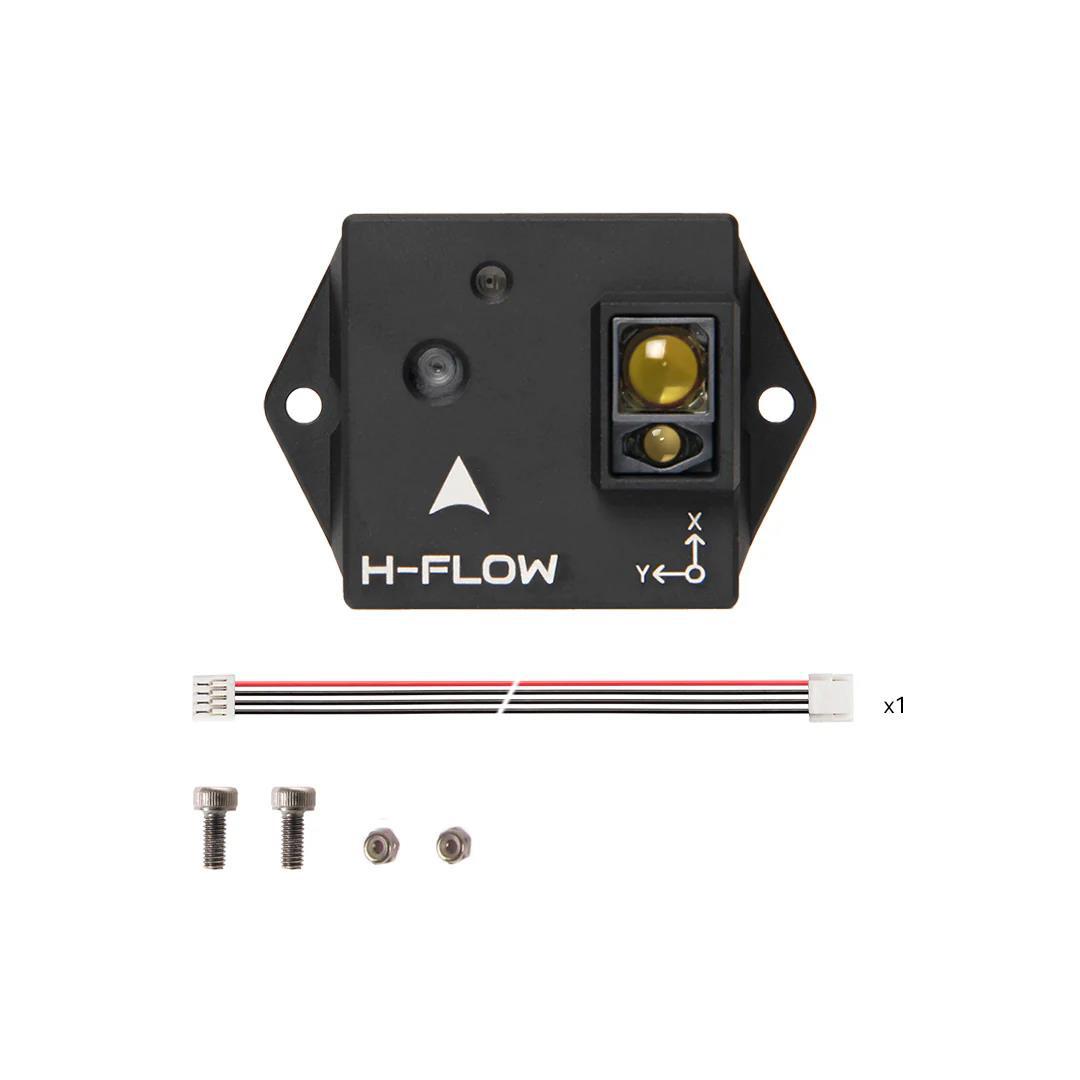

         Package Includes:
 * 1x H-Flow
 * 4-pin GH cable
 * 2x M2.5 Screws
 * 2x M2.5 Nylon Locking Hex Nuts

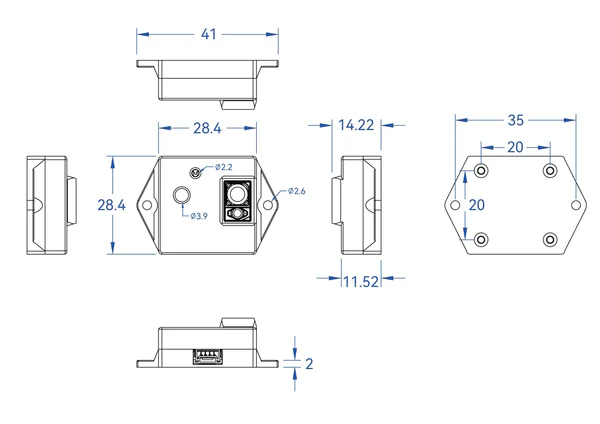

         Dimension

With Case

         PCB Only
