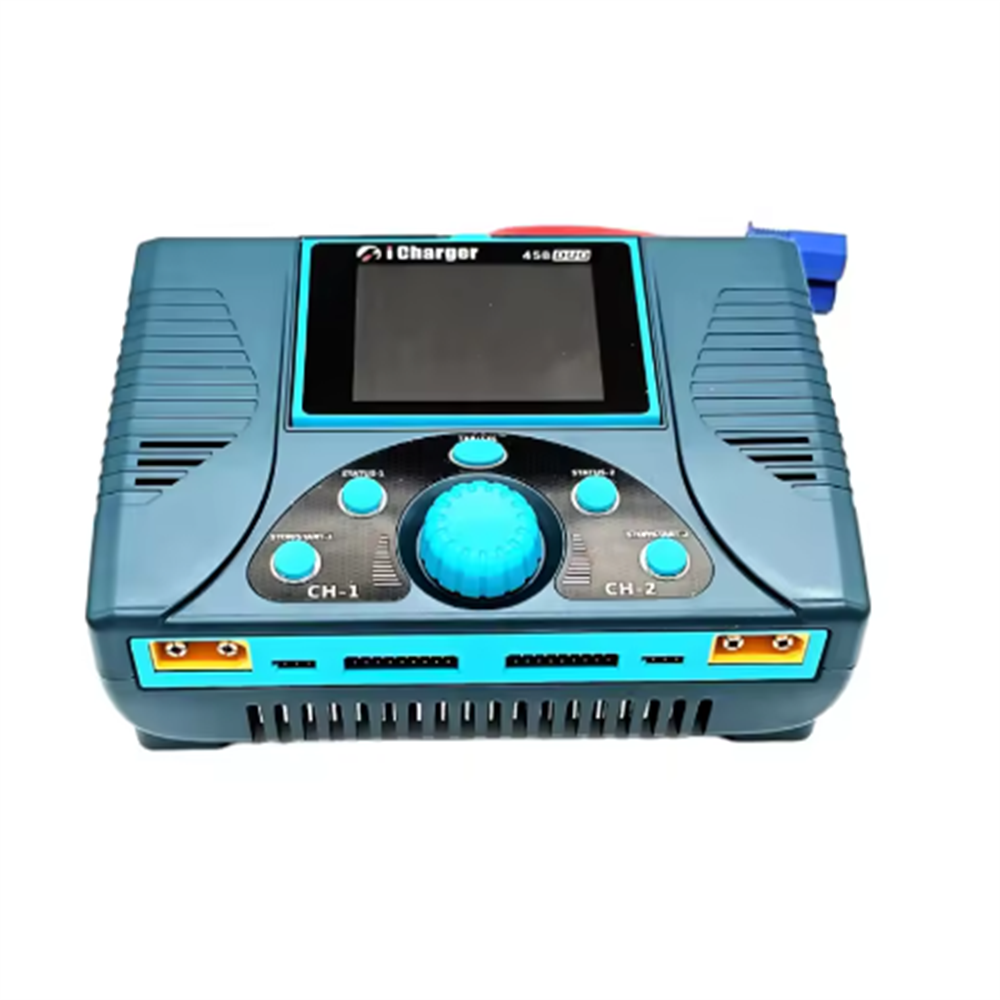

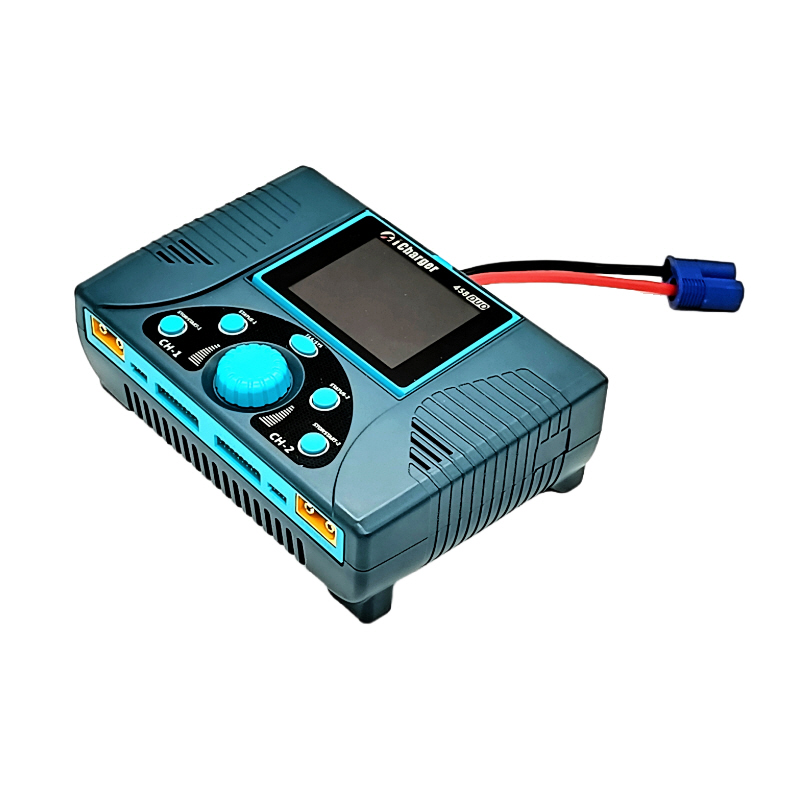

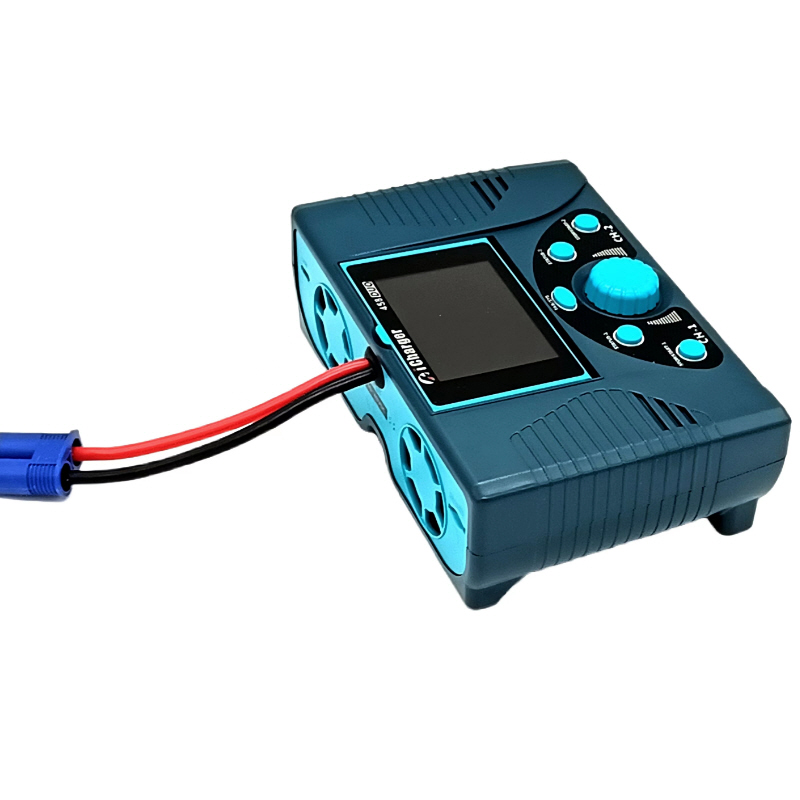

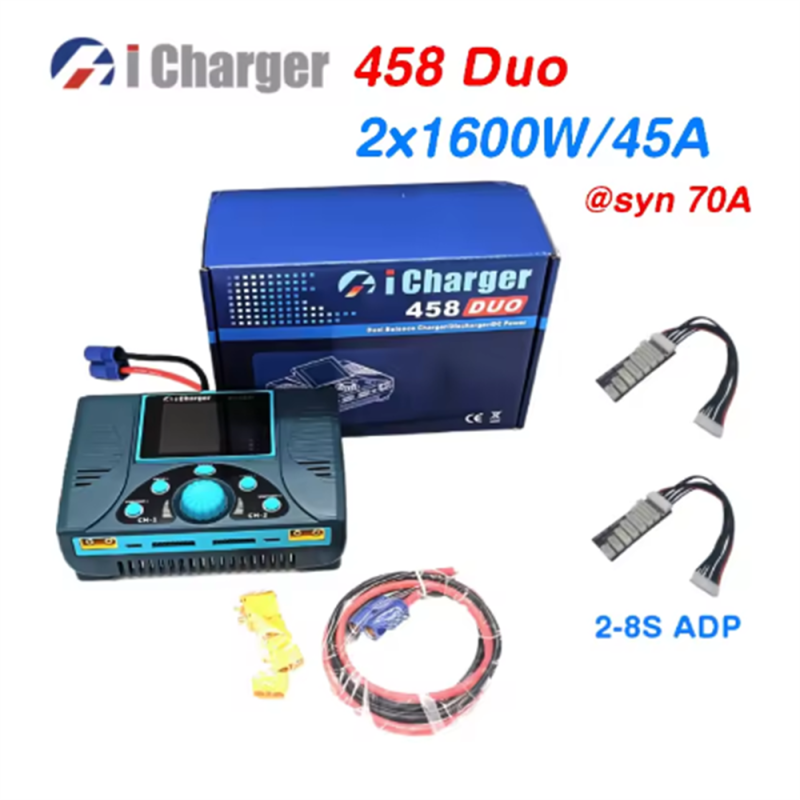

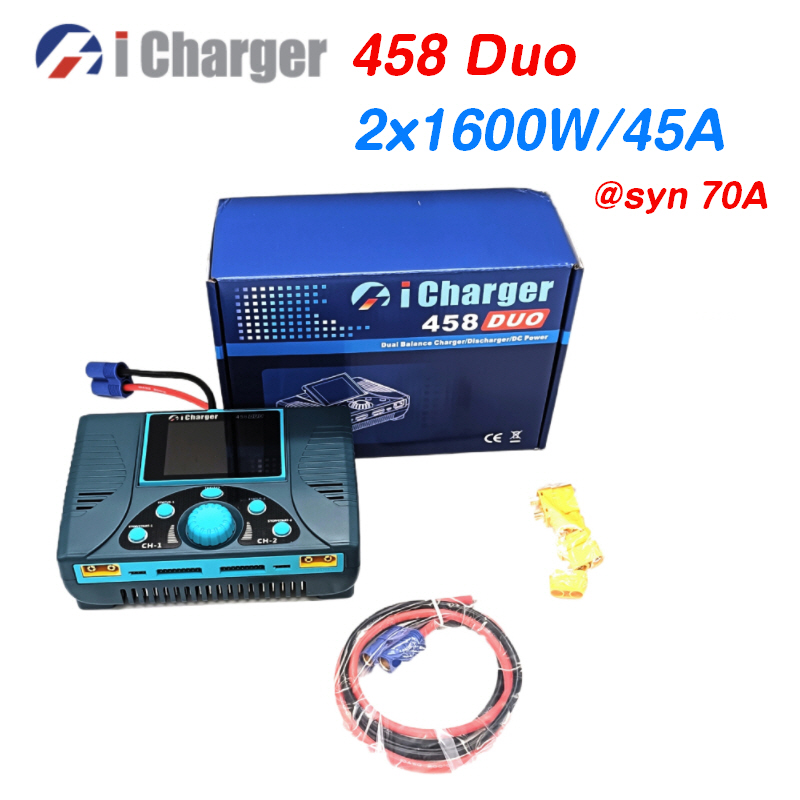

New ICharger 458 Duo Charger High Current/High Power/Multi-function 2200W/45A/8S

Name: New ICharger 458 Duo Charger High CurrentHigh PowerMultifunction 2200W45A8S
Brand: ICharger
Price: 360 USD

Buy cheap New ICharger 458 Duo Charger High Current/High Power/Multi-function 2200W/45A/8S product

Place of Origin : Zhejiang, China

Color : Bule

Product name : ICharger 458 Duo

External dimensions : 171*118*57 earth 0.5mm

MOQ : 2 sets

Price : $360-382 / set

Device weight : 930g

Brand Name : ICharger

Brand : ICharger

Contact Now

Input voltage range:10-49VDC Maximum output voltage:40VDC Maximum input current limit:70A(Channel 50A x2) Maximum charge/discharge current: 70A(Channel 45Ax2) Maximum charge power: 2200W (Channel 1600Wx2) Maximum discharge power: 140W (Channel 80Wx2) Maximum recovery discharge power:2200W(Channel 1600Wx2) Maximum extended discharge power:2200W(Channel 1600W @36V/45A) Maximum balance current:4A(Channel 2Ax2) TYPE-C PD charging port: support 5V/3A, 9V/2A, 12V/1.5A Support battery type:LiPo,Lilo, LiFe,LiVH, LTO, NiZn, NiMH, NiCd, Pb Device weight:930g External dimensions:171×118×57 earth 0.5mm 1. Adopt advanced Synchronous buck-boost DCIDC converter technology, with high power, high current and high conversion efficiency. The maximum charging power is 2200W, the maximum channel charging and discharging current is 45A, and the maximum two-channel synchronous charging and discharging current is 70A. 2. Support 8 series of balance charging of LiPo, Lilo, LiFe, LiVH,Nizn and LTO (adopt unique internal resistance correction balance algorithm and the maximum balance current of 2A to ensure the fast and accurate completion of balance); Support 1-25 series nickel-metal hydride, nickel-cadmium battery charging; Support 1-15 lead-acid battery charging. 3. Realize dual-channel adjustable digital power supply (with protection functions such as overcurrent, overvoltage, input undervoltage and input overcurrent). 4. With type-c PD charging port, it is convenient for users to charge mobile phones and tablets. 5. Intelligent fan control. The fan speed is controlled by the internal temperature sensor. 6. Internal temperature protection. If the internal temperature is greater than the attenuation temperature, the device automatically reduces the output power. If the temperature is higher than the stop temperature, the machine will stop automatically. 7. The machine can save the parameter Settings of 64 groups of batteries, and support data import/export SD card. 8. 2.8 "IPS full view color LCD display. Displays abundant information such as current, voltage, quantity, power, internal resistance, control status, consumption time, and temperature. 9. A variety of discharge functions: this machine discharge, recovery to the input or another channel discharge, and lithium battery extended discharge function 10. Supports offline and online measurement of battery internal resistance. Not only the internal resistance of the whole battery pack can be measured, but also the internal resistance of each individual cell of the lithium battery pack. 11. Provide full protection. Input or output reverse pole protection, input voltage/current protection, battery temperature protection, capacity protection, time protection, maximum power, etc. 12. It supports hardware program update via USB port or SD card, and can display, plot and analyze charging and discharging data through Junsi Console software.

Product Description

New ICharger 458 Duo Charger High Current/High Power/Multi-function 2200W/45A/8S

Specification

item	value
place of origin	China
	Zhejiang
brand name	ICharger
Product name	ICharger 458 Duo
Brand	ICharger
Color	Bule
Device weight	930g
External dimensions	17111857 earth 0.5mm

Packing & Delivery

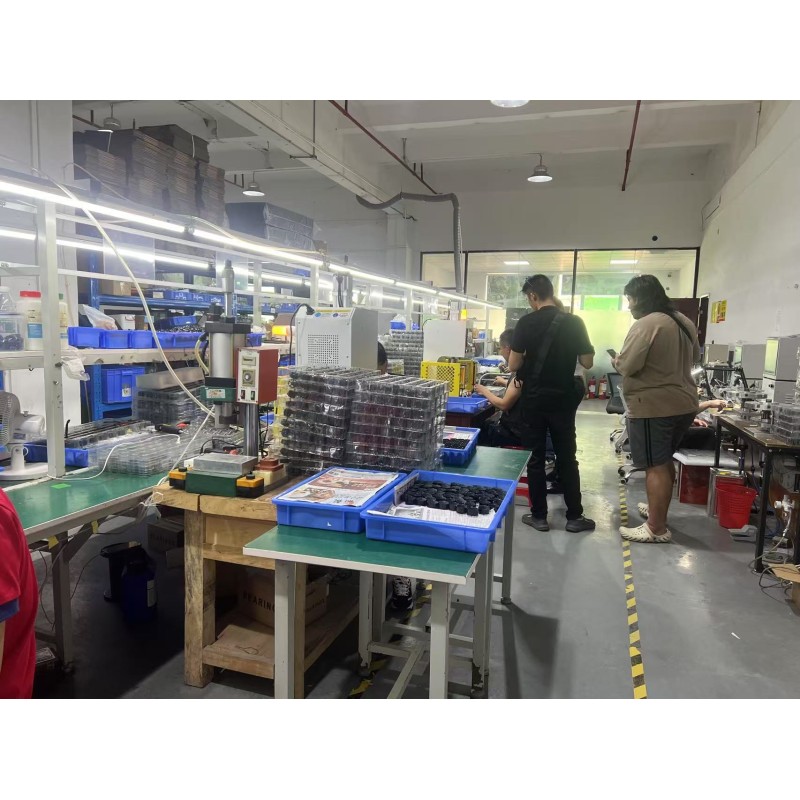

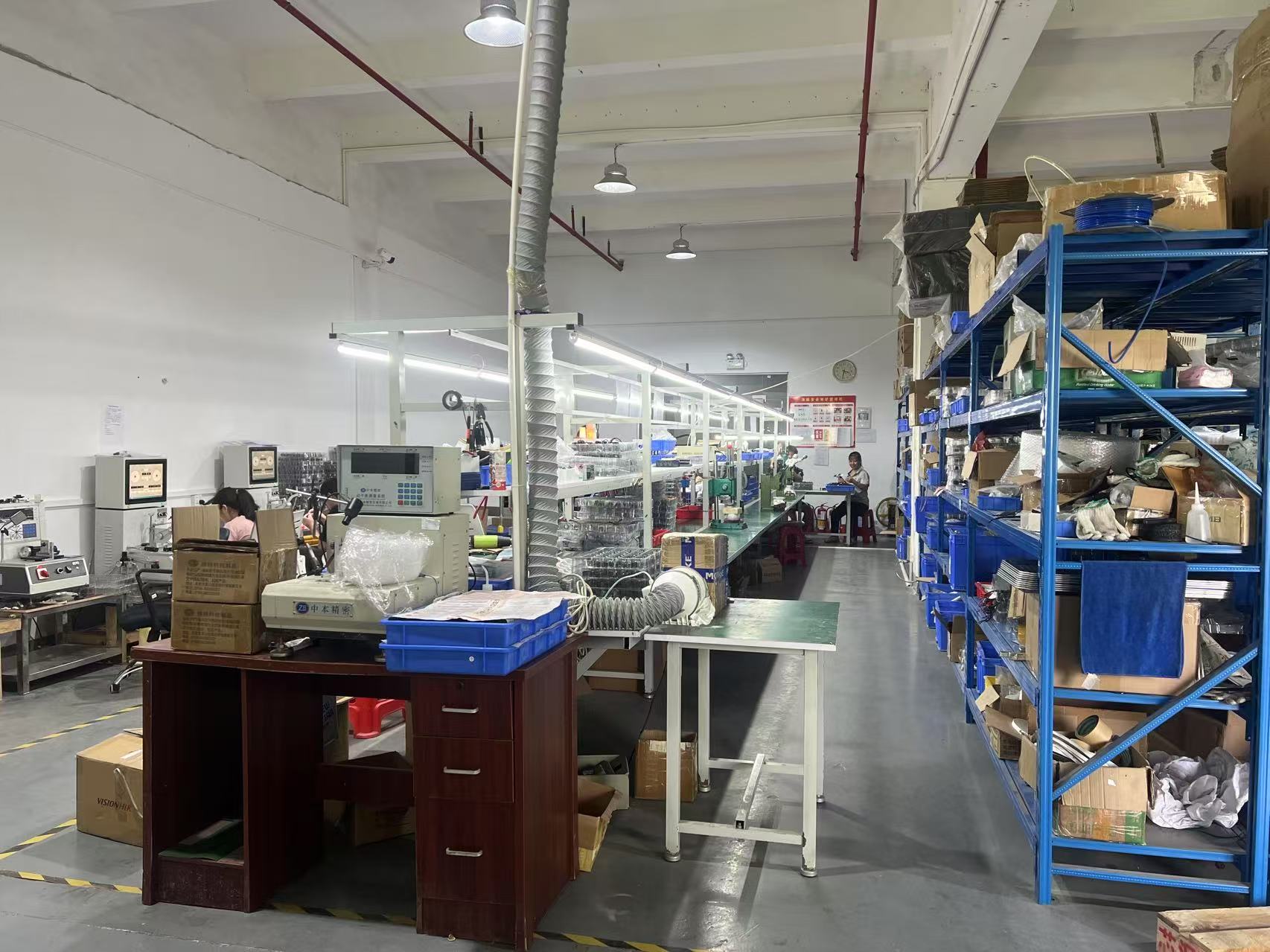

Company Profile

Yiwu Infly Technology Co., Ltd is a one-stop supplier with different kinds of the UAV drone accessories such as complete drone, drone frame , drone motor, flight controller, remote controller, lipo battery, battery charger and so on. We also focus on that researching and developing agricultural drone products independently. Our company was build in Yiwu city ,Zhejiang Province on 2016 and developing fast , now we have sell our drone to more than 20 countries in the world.

Our products include agriculture uav , motors, propellers, esc, carbon fiber pipes , other drone's parts and so on. We provide the wholesale price for our customers who place the order with large quantities of any drone product you need In our catalog list and the customized products as your demanded.we also have the team with 15-20 professional persons to spray the contracting project, such as paddy fields, corn fields, cotton fields , mountains etc. so we have rich experience to spray plants and at same time to improve the drones more stable and flying well.

If you purchase agriculture drones, we provide the professional training to operate the drone flying and operations with free if you have time to come our company. If can't come to our company, we also provide after-sell service online at any time.

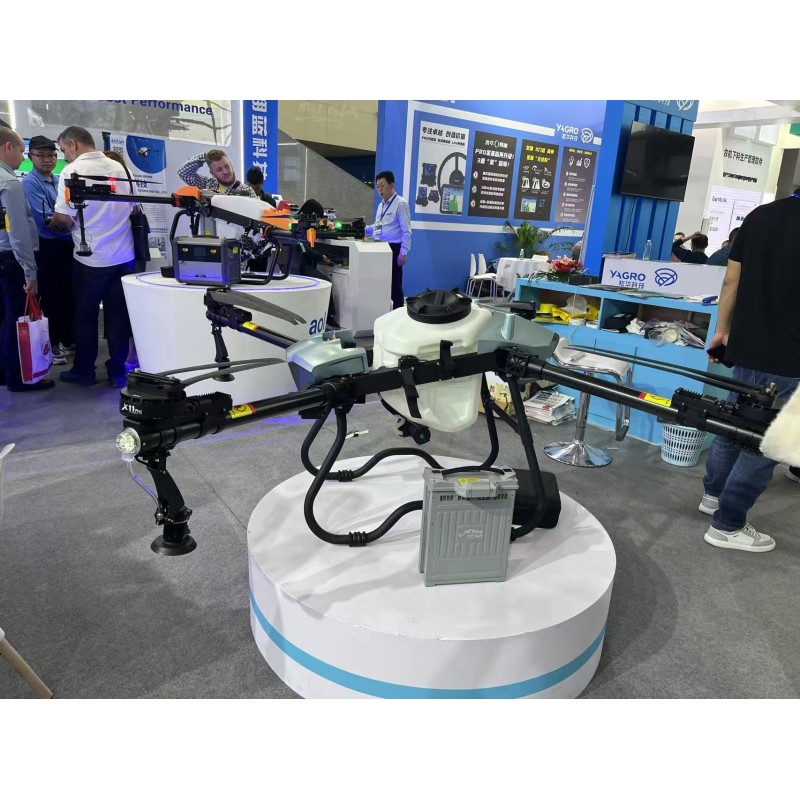

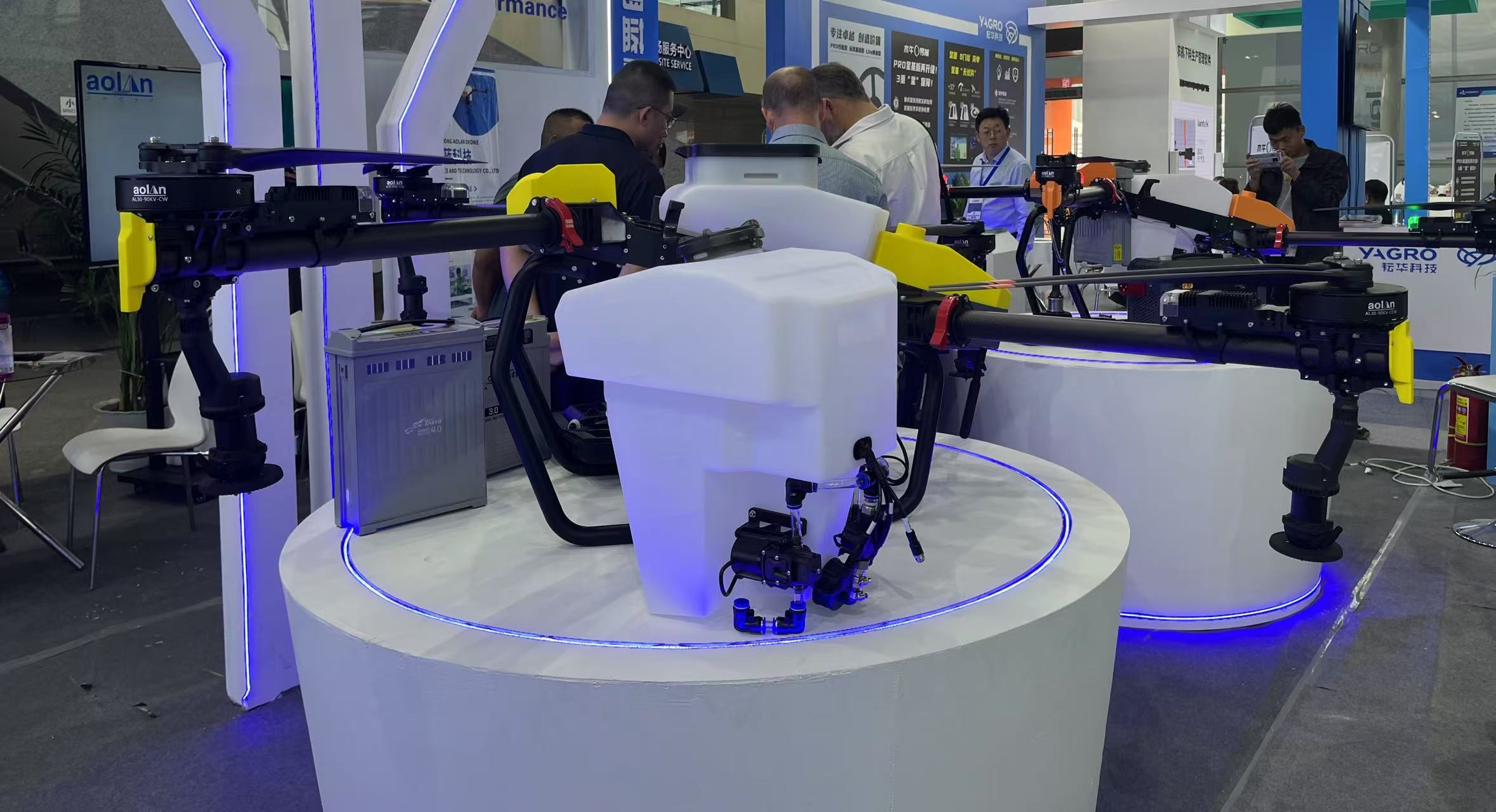

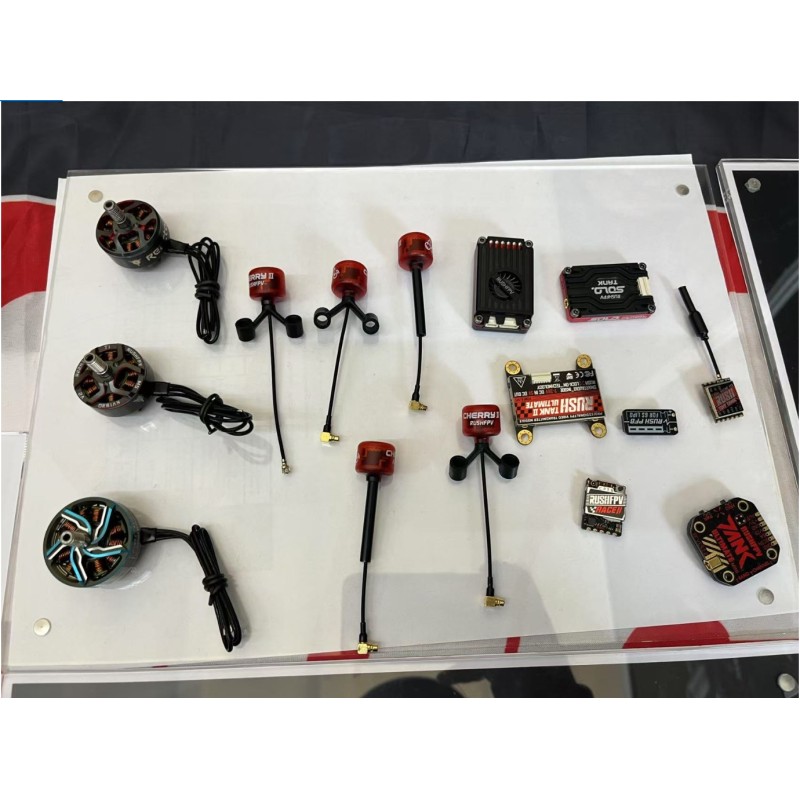

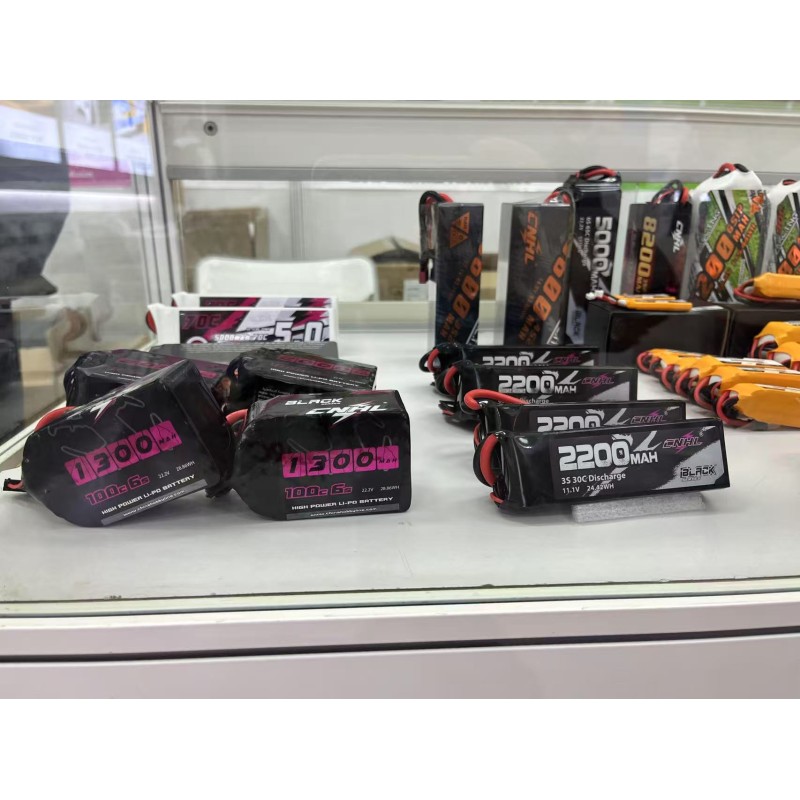

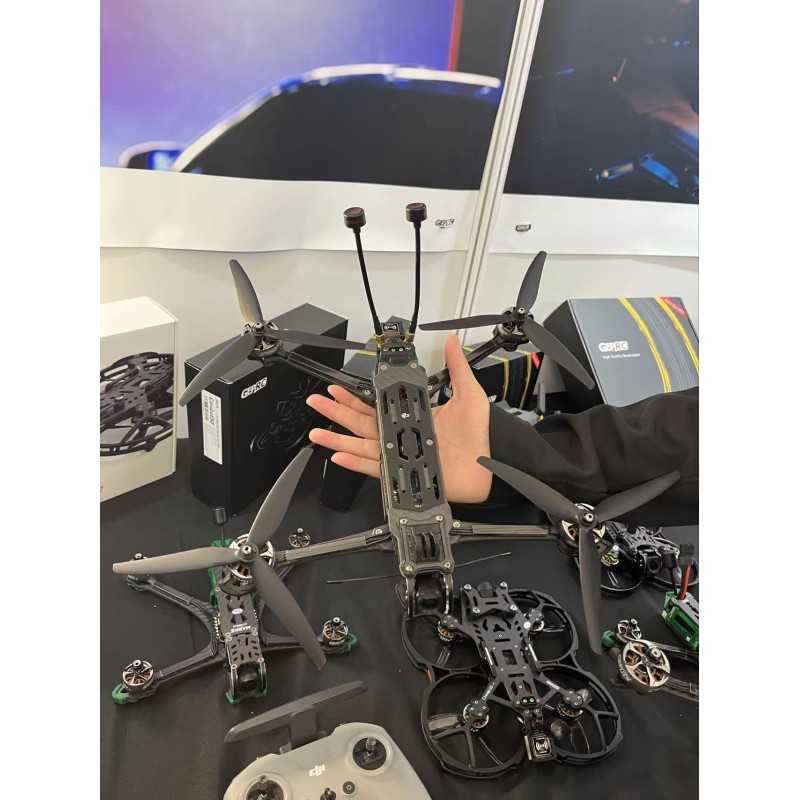

Exhibition

Our Advantages

FAQ

1. Who are we?
We are based in Zhejiang, China, start from 2016,sell to South America(20.00%),North America(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Southeast Asia(10.00%),South Asia(10.00%),Domestic Market(5.00%),Eastern Europe(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.What can you buy from us?
Agriculture drone,FPV drone, Drone accessories,Drone Frame, Brushless motor,Flight control,remote controller, antenna, vtx, battery , charger and so on.

4. Why should you buy from us not from other suppliers?
Yiwu Infly Technology Co., Ltd is a one-stop supplier with different kinds of the UAV drone accessories such as complete drone,drone frame , drone motor, flight controller, remote controller, lipo battery, battery charger and so on with competitive price for your better choice.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CHF;
Accepted Payment Type: T/T,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

New ICharger 458 Duo Charger High Current/High Power/Multi-function 2200W/45A/8S Images
