SIYI MK32 Enterprise Handheld Ground Station Controller Installations For The Remote Control Of Industrial Operations

Name: SIYI MK32 Enterprise Handheld Ground Station Controller Installations For The Remote Control Of Industrial Operations
Brand: SIYI
Price: 485.80 USD

Buy cheap SIYI MK32 Enterprise Handheld Ground Station Controller Installations For The Remote Control Of Industrial Operations product

private mold : Yes

Channels : 16 channels of S.BUS 5 channels of PWM

Place of Origin : China, GuangdongChina

Price : $485.80-599.80 / piece

Radio Control Style : Remote Controller

Model : MK32

Power : Battery

Plastic Type : ABS

Brand Name : SIYI

compatible brand : DJI

Battery Life : 10Hours

MOQ : 2 pieces

Material : Plastic

Max Transmission Range : 15 kilometers (unobstructed free of interference)

Monitor : 7-Inch High Definition and High Brightness LCD Tou

Contact Now

Product Features
Material	Plastic
place of origin	Guangdong,China
Radio Control Style	Remote Controller
Max Transmission Range	15 kilometers (unobstructed, free of interference)
Channels	16 channels of S.BUS, 5 channels of PWM
Battery Life	10Hours
Monitor	7-Inch High Definition and High Brightness LCD Touchscreen
brand name	SIYI
Model	MK32
Plastic Type	ABS
private mold	Yes
Power	Battery

         Technical

Overall
Model: MK32
Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
- QGroundControl
- SIYI FPV
Image Transmission Compatible Windows GCS:
- QGroundControl

Ground Station

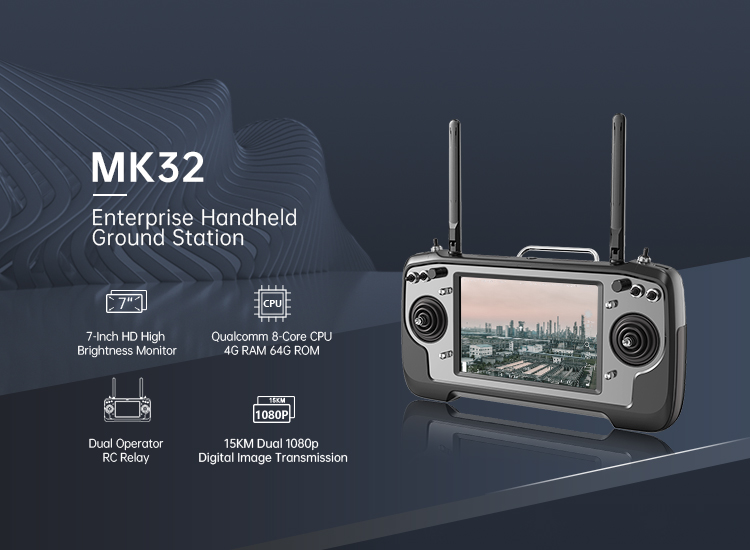

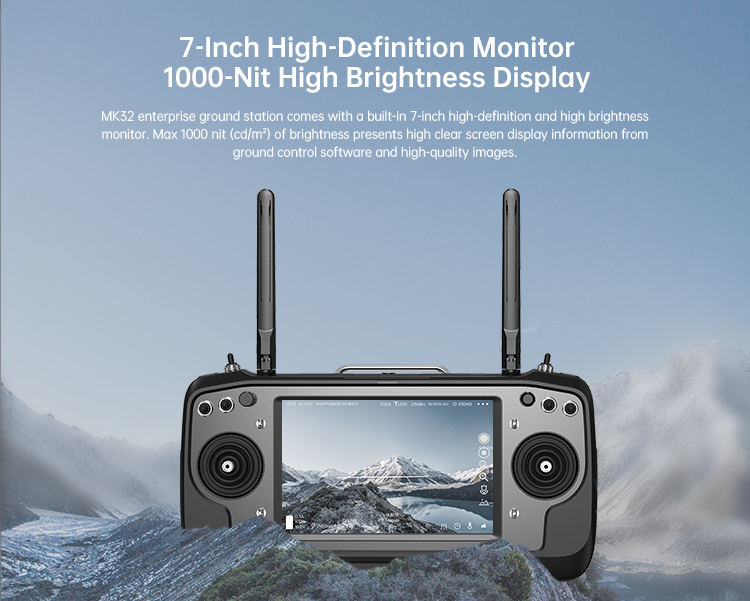

Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours

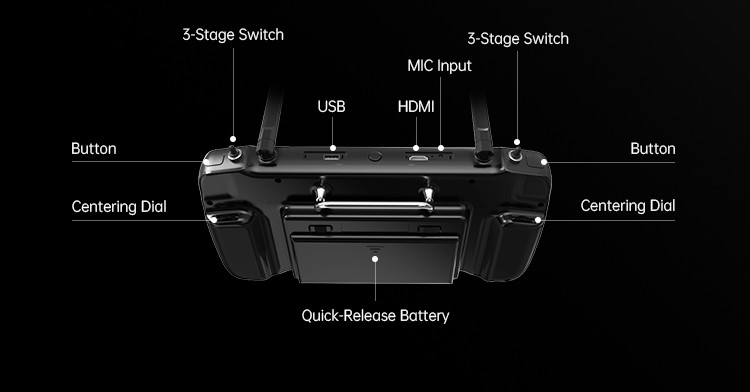

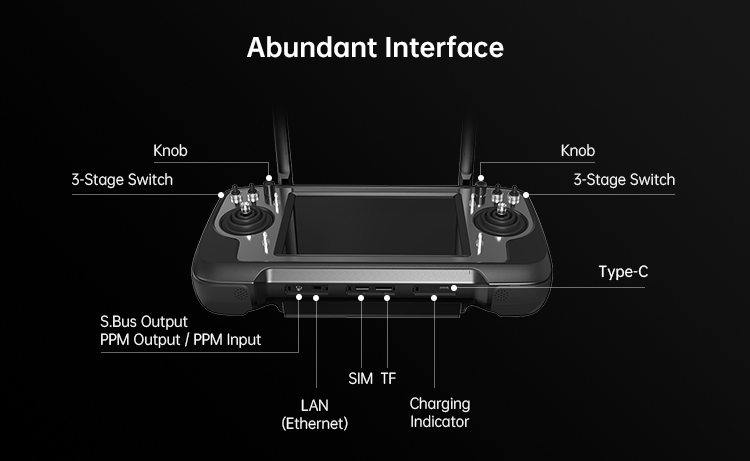

Interface & Ports:
- Video Output: Standard HDMI
- External Device: USB-A
- MIC Input: Top Audio Port
- Charging: Type-C
- Firmware Upgrade: Type-C
- File Transfer: Type-C / USB-A
- 4G Cellular Network: SIM Card Slot
- External Storage: TF Card Slot / USB-A
- Communication: LAN (Ethernet)
- RC Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Working Temperature: -10 to 50°C

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50°C

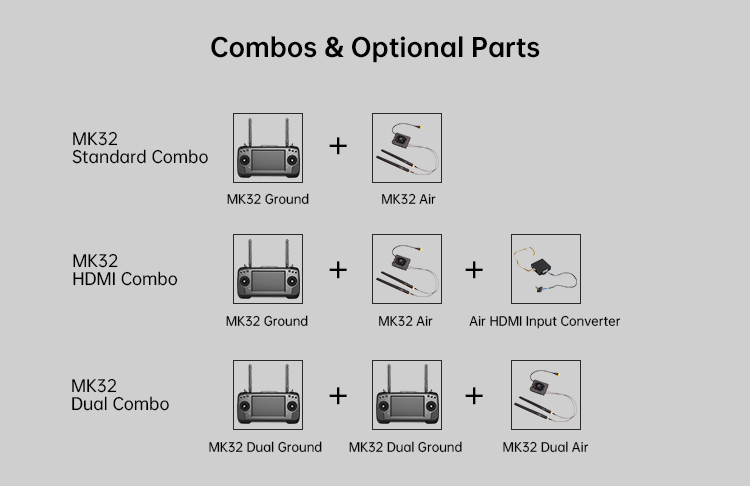

Air Unit HDMI Input Converter
(Optional or Packed with HDMI Combo)
Video Input Port: Mini HDMI
Video Output Port: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W
TF Card Recording Resolution: 1080P (1920*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps
Video Storage Bitrate: 12 Mbps
File Storage Format: FAT32
Video Format: H.265
Supported MicroSD Cards: MicroSD Class10, Max 32GB
Working Temperature: -10 to 50°C
Dimensions: 42 x 41 x 11 mm
Weight: 26 g


SIYI MK32 Enterprise Handheld Ground Station Controller Installations For The Remote Control Of Industrial Operations

Company

1.Q : What's your advantage?
A : We have strong suppliers who can provide professional services and competitive prices

2.Q : How l believe you?
A :We have Alibaba's trade guarantee, and we can also provide you with some real-life photos of our products for you to check

3.Q :Can you give warranty of youpproducts?
A :Of course, if you have any quality or service issues, please feel free to contact us at any time, and we will provide you with professional after-sales service

4.Q :Where are you? Can I visit you?
A :Of course, you are welcome to visit our factory anytime

5.Q :How about the delivery time?
A :We usually expect to ship orders with inventory within seven days. If there is no stock available, the delivery time may change

Welcome to inquiry for your needs, we are looking forward to cooperating with you, :)
