RTF 2 Axis Brushless Gimbal Camera With 2208 Motors BGC Controller Board Support SJ4000 3 4 For Rc Drone

maximum aperture : camera strap

Model Number : VZLR7144

built-in memory size : JST plug / XH-2.54 plug

private mold : No

Image Sensor : MOS, CMOS

High Definition Support : 480P

Waterproof : Ip67

additional function : Recording Function, Camera Function

wideangle : for DJI phantom I II and other DIY drones

Material : Metal

Brand : OEM ODM

Place of Origin : China, Guangdong China

MOQ : 1 piece

optical zoom : GC3.0 Brushless control panel

media type : CNC metal brushless gimbal

Price : $25.85-31 / piece

screen size : < 2"

Contact Now

Product Features
screen size	< 2"
Material	Metal
place of origin	Guangdong, China
Model Number	VZLR7144
Brand	OEM ODM
additional function	Recording Function, Camera Function
Image Sensor	CMOS
private mold	No
built-in memory size	JST plug / XH-2.54 plug
media type	CNC metal brushless gimbal
optical zoom	GC3.0 Brushless control panel
wideangle	for DJI phantom I, II and other DIY drones

         RTF 2 Axis Brushless Gimbal Camera with 2208 Motors BGC Controller Board Support SJ4000 3 4 Camera For Rc Drone


Specification

Upgrade to high-quality brushless PTZ control panel, chips are original chip, increase the supply anti-reverse polarity
protection, counter-power to prevent customers from unintentional indirect cause significant damage
Original sensor chip, better accuracy, and change the sensor




           interface, the connection is more solid, easy to loose, iic error
does not occur; Upgrade the roof, increasing the head hook hole, easy to use PTZ hook
You can use the remote real-time control of pitch and roll angle Extended function: to set flip, installed on fixed wing;
Handheld PTZ can be changed; (user to modify, we does not provide technical support)
Can be upgraded to three PTZ (user to modify, we does not provide technical support)

Specifications:
Name: CNC metal brushless gimbal
Material: CNC Aluminium alloy
Motor: Model 2208 kv80 Brushless motor
Control Panel: BGC3.0 Brushless control panel
Software: BGC2.2
Strap: camera strap
Compatible camera: 3 3 4
Battery plug type: JST plug / XH-2.54 plug
Voltage: 12V/3cell Lipo battery
Compatible model: for DJI phantom I, II and other DIY drones
Color: black Silver
Size: 80 x 80 x 80mm

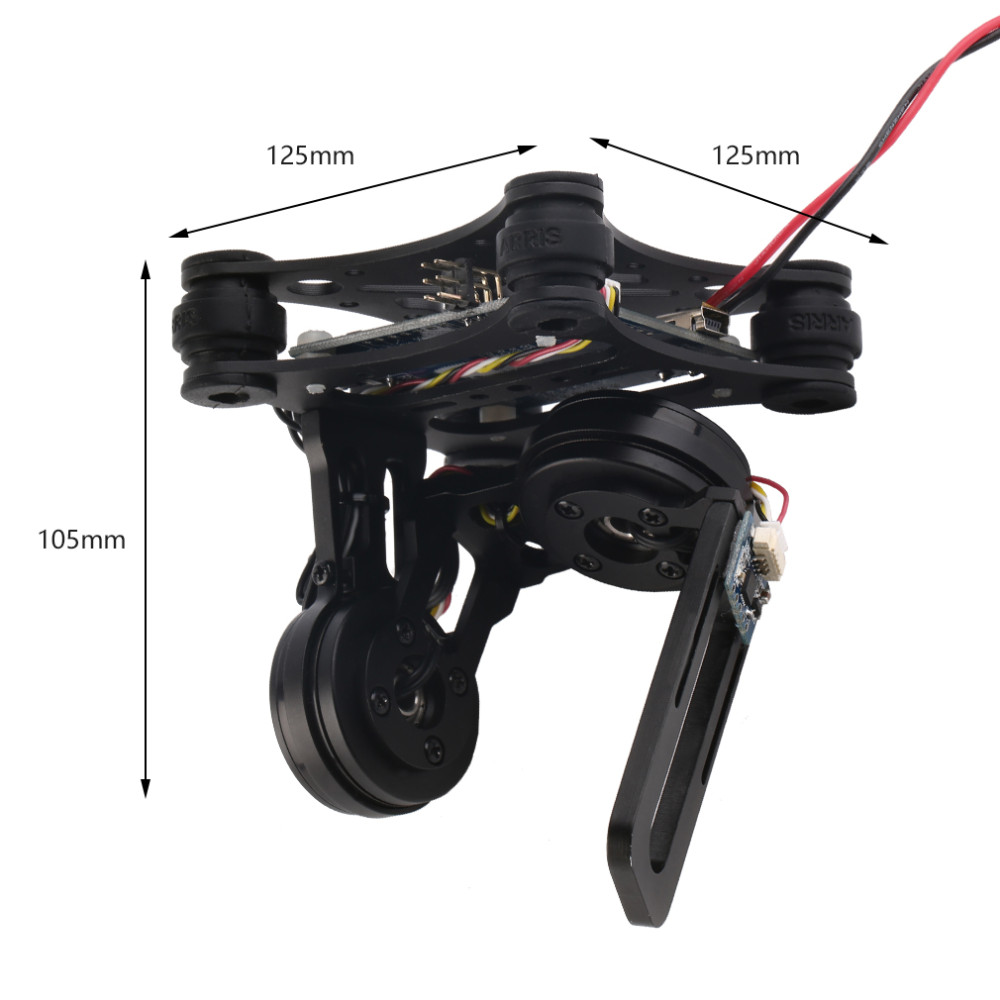

Package size: 125 x 125 x 105mm
Net weight: 170g
Pacakge weight: 210g

Notes:
1. Recommended power supply for the gimbal is 12V. (3cell lipo battery)
2. The camera must fasten on the gimbal. (Not any loose, this is very important)
3. Adjust the camera left or right, let the camera almost at level.
4. Please do not power on the gimbal until the camera is fixed on the gimbal.

How to install:
1. Remove the damping balls, open the top cover of the mounting plate.
2. Install the top cover of the mounting plate to the bottom of the DJI phantom.
3. Install the damping balls.
4. Install your camera,and fasten it with straps
